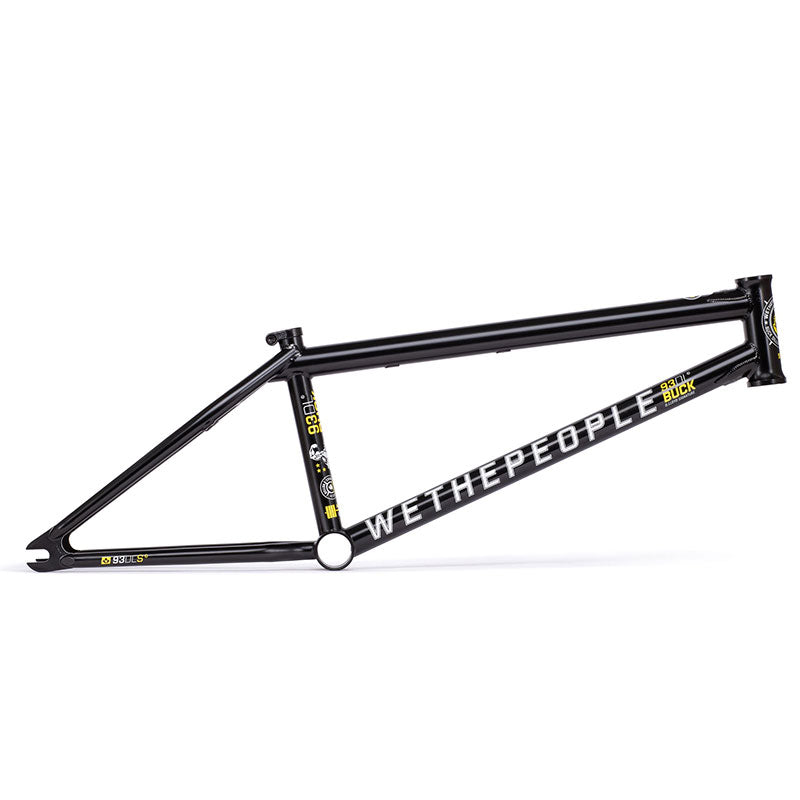

Dillon Lloyd Signature

material: butted, seamless 4130 chromoly tubing japanese
toptube length: you can select the available top tube (TT) length in the size option menu above
headtube angle: 75,5 degrees
seattube angle: 71,0 degrees
chainstay length: 13.2 inch with 25-9 gearing
bottom bracket height: 11,8 inch
standover height: 9.125 inch

headtube: taller 127mm height, cnc machined and heat-treated, integ. h / set, drilled for gyro tabs
bottom bracket: mid-bb width: 74mm, cnc machined and heat-treated
seattube: fits 1 inch seatposts
dropouts: 14mm | 7mm thick investment cast and heat-treated
downtube gusset: yes
toptube gusset: yes

tire clearance: 2,5 inch
brake mounts: mounts drilled for Pivot-3 type removable brake mounts, but brake hardware is NOT included
gyro tab holes: yes

additional information:
ovalised dent resistant chain stays
taller 127mm extended headtube for less spacers with an uncut fork
extruded top tube with integrated threads for cable guides
slim profile integrated seat clamp with 6mm hex
