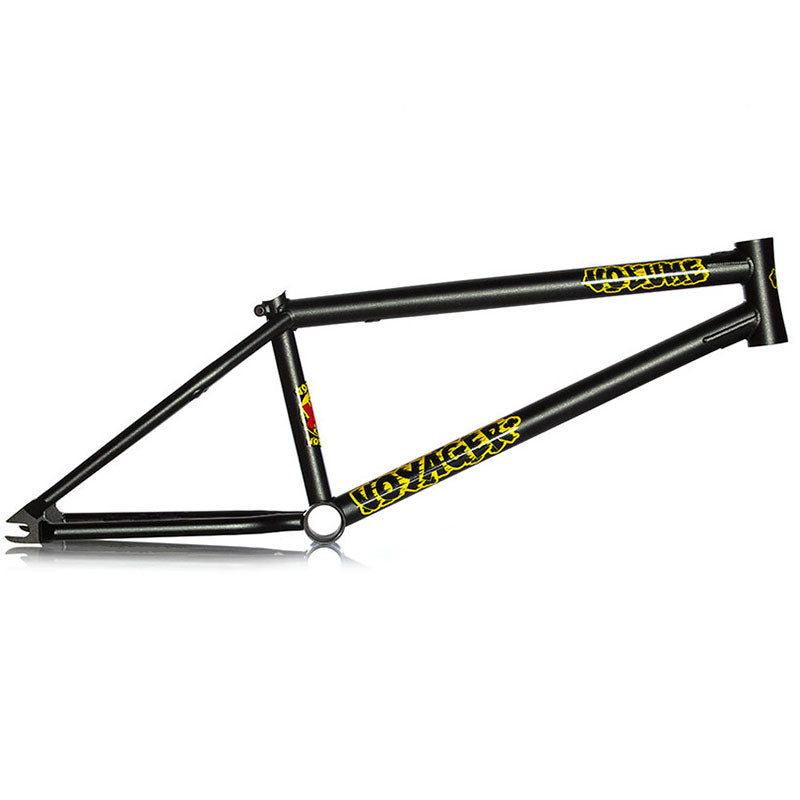

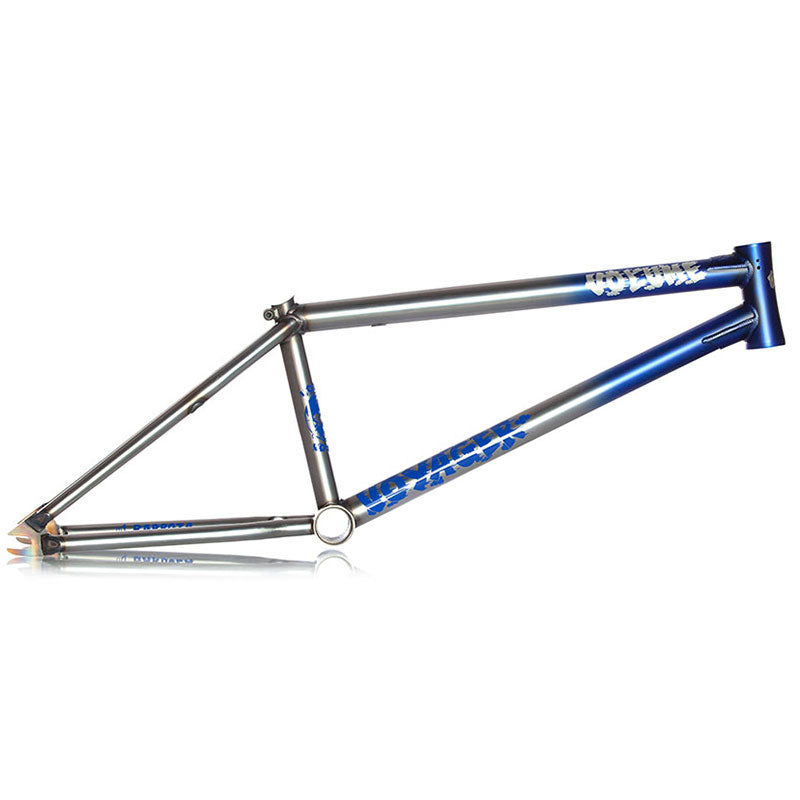

Volume Voyager V2 Frame

Volume Voyager V2 Frame

Shipping calculated at checkout.
Color
Size
Option

SKU

SKU:20002390

Barcode (EAN) per variant
BLACK / 20.5''TT / BRAKEMOUNT: 810006442496
BLUE / 20.5''TT / BRAKEMOUNT: 810006442571
BLUE / 20.75''TT / BRAKEMOUNT: 810006442601
Weight per variant
BLACK / 20.5''TT / BRAKEMOUNT: 2.33 kg
BLUE / 20.5''TT / BRAKEMOUNT: 2.33 kg
BLUE / 20.75''TT / BRAKEMOUNT: 2.33 kg
Jarren Barboza Signature

material: 100% 4130 Double Butted Heat Treated Chromoly
top tube length: choose available TT length in the size menu above
headtube angle: 75,25
headtube length: *
seattube angle: 71 degrees
chainstay length: 12,5 inch (slammed)
bottom bracket height: 11,7 inch
standover height: 9,25 inch

headtube: compatible with integrated headsets (45/45) | heat treated
bottom bracket: mid | heat treated
seattube: fits 1 inch seatposts | integrated seat clamp
dropouts: 14mm slots | 6mm thick | heat treated
downtube gusset: yes
toptube gusset: yes

tire clearance: S chainstays for bigger tire clearance
brake mounts: yes
gyro tab holes: no
