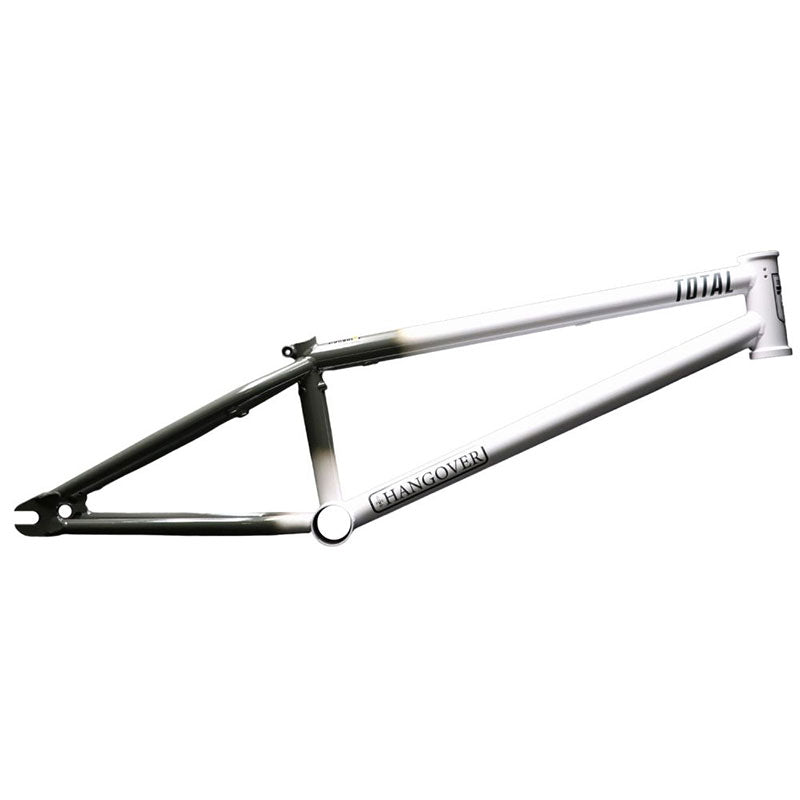

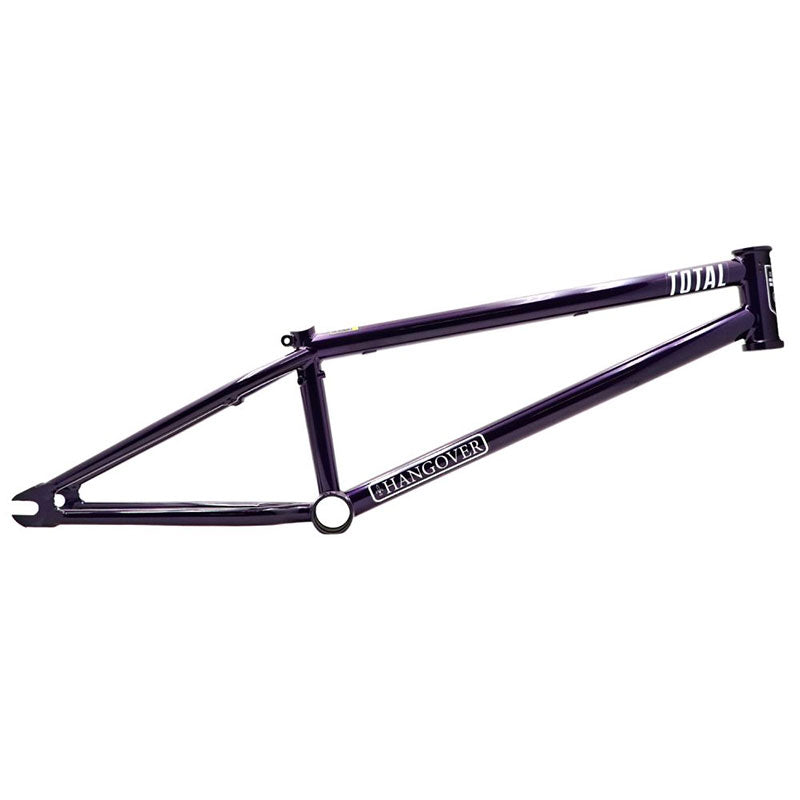

Total Hangover H4 Frame

Total Hangover H4 Frame

Shipping calculated at checkout.
Color
Size
Option

SKU

SKU:20002041

Barcode (EAN) per variant
BLACK / 21''TT / BRAKEMOUNT: 603004801934
CHROME / 20.6''TT / BRAKEMOUNT: 0700512947106
GREY / 21''TT / BRAKEMOUNT: 603004801941
GREY/WHITE / 21''TT / BRAKEMOUNT: 0700512947113
Weight per variant
BLACK / 21''TT / BRAKEMOUNT: 2.09 kg
CHROME / 20.6''TT / BRAKEMOUNT: 2.09 kg
GREY / 21''TT / BRAKEMOUNT: 2.09 kg
GREY/WHITE / 21''TT / BRAKEMOUNT: 2.09 kg
Alex Coleborn Signature

material : full japanese 4130 chromoly
top tube length : choose available TT size in the menu above
head tube angle : 75,25 degrees
head tube length: 117mm
seat tube angle : 71 degrees
chain stay length : 12,6 - 12,9 inch
bottom bracket height : 11,5 inch
stand over height : 7,25 inch

head tube : compatible with integrated headsets (45/45)
bottom bracket : mid
seat tube : fits 1 inch seat post | integrated seat clamp
dropouts : 14 mm dropouts | 6 mm thick | heat-treated
down tube gusset : internal
top tube gusset : internal

tire clearance : fits large tires
brake mounts : removable on seatstay (not included)
gyro tab holes : yes

additional information :
ovalised chainstays
integrated chain adjusters
regular style seat clamp
exclusive DBS braking system
