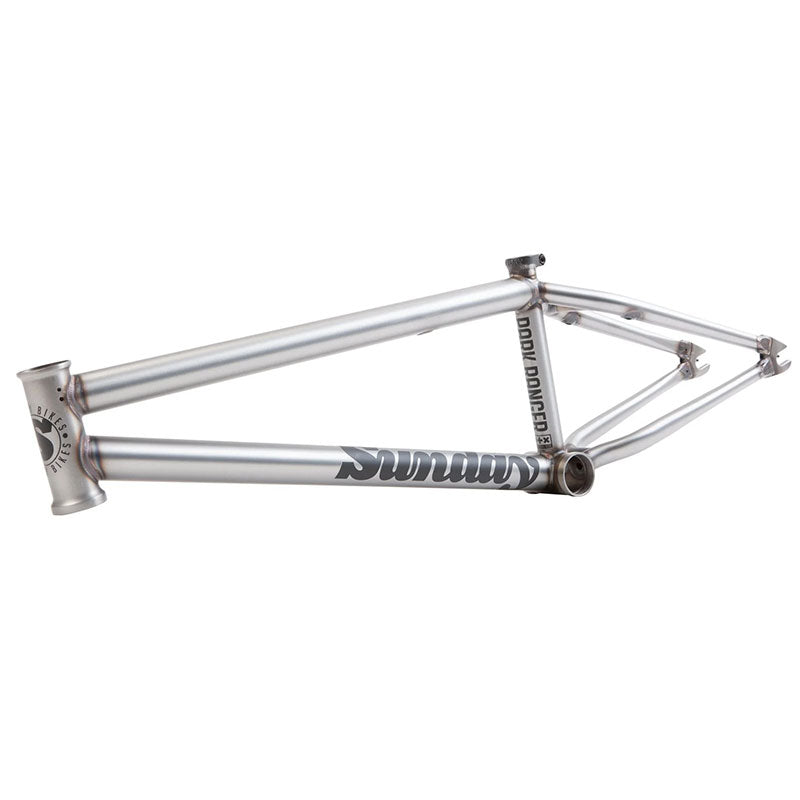

material : 100% 4130 chromoly
top tube length : select the available top tube (TT) length in the size option menu above
head tube angle : 75,25 degrees
head tube length: 122mm
seat tube angle : 71 degrees
chain stay length : 12,7 - 13 inch
bottom bracket height : 11,8 inch
stand over height : 7,625 inch

head tube : compatible with integrated headsets (45/45 degrees)
bottom bracket : mid
seat tube : fits 1 inch seatposts
dropouts : hollow | 8mm thick | 14mm diameter slots
down tube gusset : yes (internal)
top tube gusset : yes (internal)

tire clearance : fits large tires
brake mounts : removable on seatstay (included)
gyro tab holes : yes

additional information :
this frame is designed specifically for technical park, transition and street riding
double butted top and down tubes
A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a "sandwiched" top tube at this critical junction.
Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings includes chain tensioners
