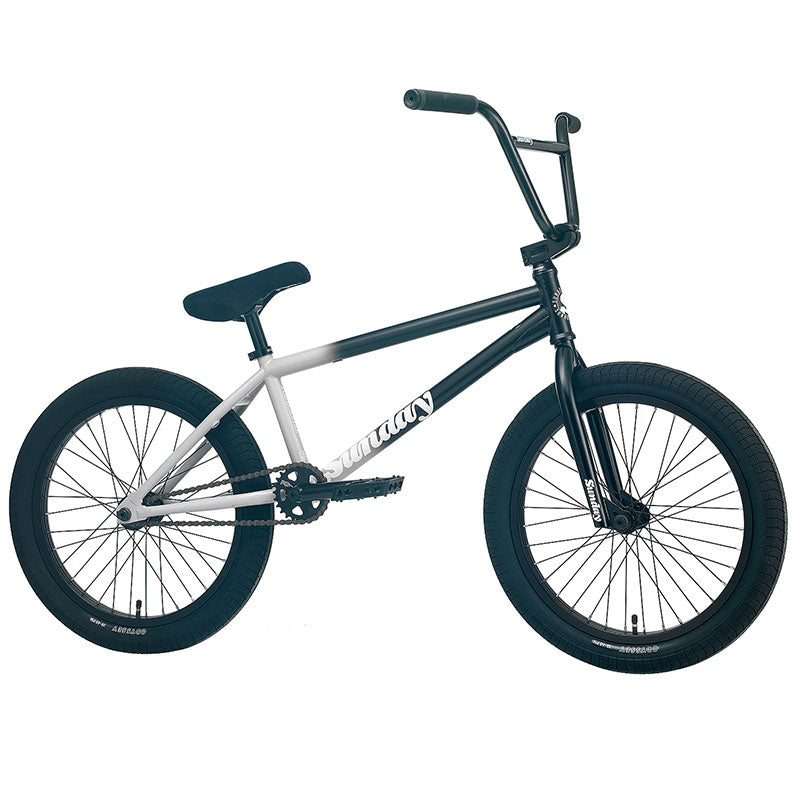

Broc Raiford Signature

driveside:choose available driveside in the option menu above: RHD (right-hand drive) or LHD (left-hand drive)

frame: full chromoly | removable brake hardware
top tube length: choose available TT length in inch in the size menu above
head tube angle: 75,5 degrees
seat tube angle: 71 degrees
chain stay length: 13,2 - 13,5 inch
bottom bracket height: 11,7 inch
stand over height: 9 inch

forks: Sunday Forecaster | hi-tensile steel | 2pc | chromoly steerer
bars: hi-tensile steel | 9 inch rise | 29 inch wide | 12 degrees backsweep | 4 degrees upsweep | 2-pc
stem: Sunday Freeze | topload | 48 mm
headset: FSA integrated | w/ 2mm alloy spacer
grips: Odyssey Broc Raiford
bar ends: Odyssey

front hub: Sunday | sealed | 36H | female 3/8 inch axle
rear hub: Odyssey Clutch V2 Freecoaster | 9t driver | PC hubguard non-drive side
front rim: Sunday Lightning | 36H
rear rim: Sunday Lightning | 36H
front tire: Odyssey Path Pro | OEM | 20 inch diameter | 2,4 inch wide
rear tire: Odyssey Path Pro | OEM | 20 inch diameter | 2,4 inch wide

cranks: 170 mm length | tubular | 3pc
bb: 19mm | sealed | mid
sprocket: Sunday Sabertooth V2 | 25t | steel
chain: KMC Z1 wide
pedals: Odyssey Twisted Pro PC
gearing: 25 x 9

seat: Odyssey Broc Raiford Signature | pivotal
seat post: Pivotal
seat post clamp: Sunday

brake: Odyssey Springfield U-brake
brake cable: Odyssey Quik Slic
brake lever: Odyssey Springfield

pegs: not included
