KINK

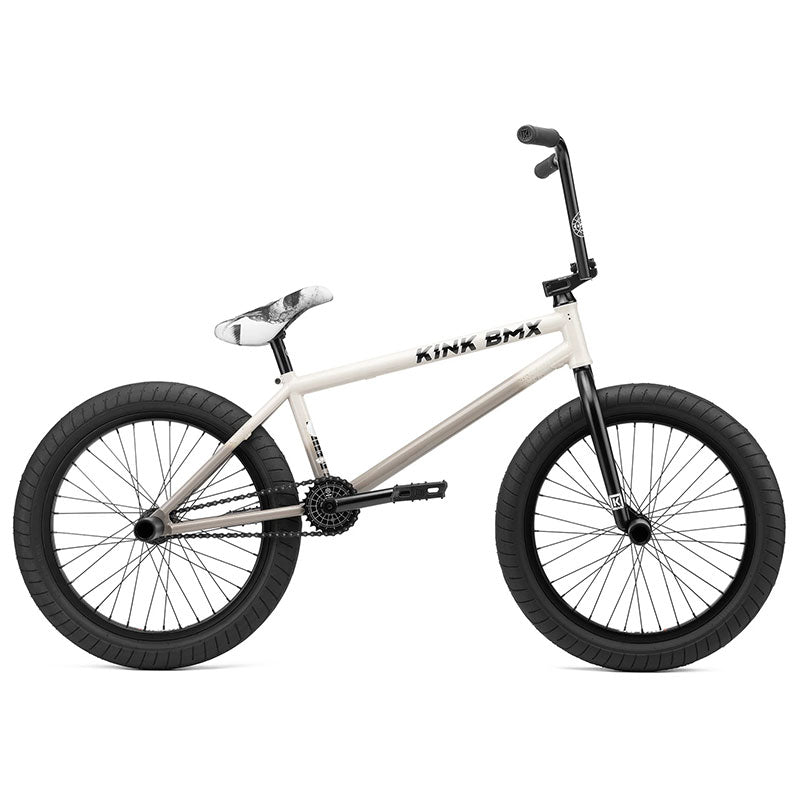

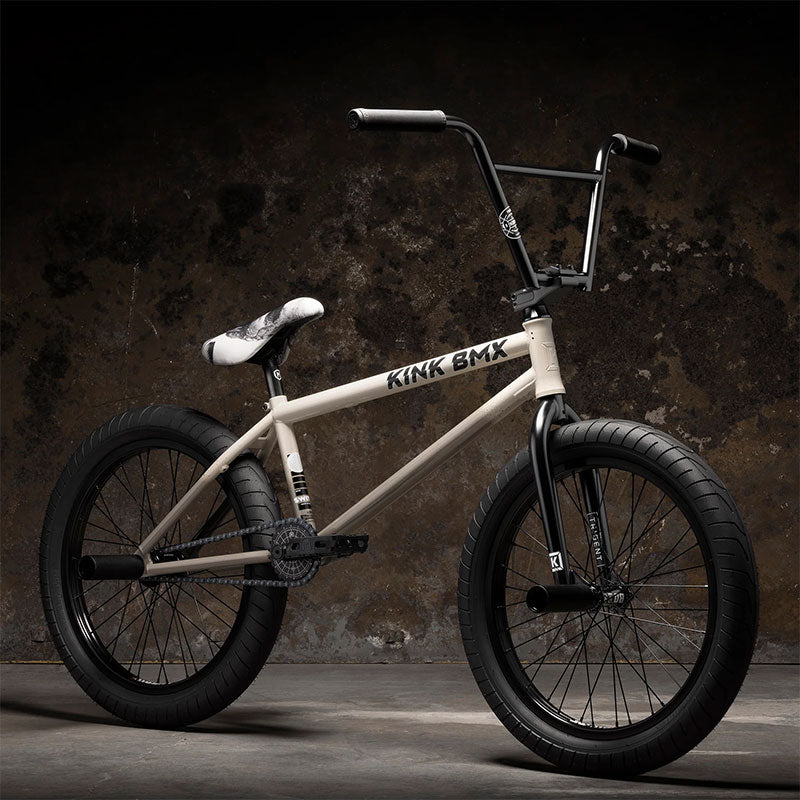

Kink Switch Complete

Kink Switch Complete

Shipping calculated at checkout.
Color
Size
Option

SKU

SKU:10001719

Barcode (EAN) per variant
GREY / 20.75''TT / RHD FC: 680031744366
Weight per variant
GREY / 20.75''TT / RHD FC: 12.53 kg
frame: Kink Switch | 100% 4130 Chromoly | removable brakemounts
top tube length: 20,75 inch
head tube angle: 75.5 degrees
seat tube angle: 71 degrees
chain stay length: 12,75 inch
bottom bracket height: 11,6 inch
stand over height: 9 inch

forks: Kink Trident | 100% 4130 Chromoly | Tapered Fork Legs | 26mm offset
bars: Kink F900 | 100% 4130 Chromoly | four piece | 9 inch rise
stem: Kink bold HRD | 50mm reach
headset: Mission sealed | integrated (41,8 x 45)
grips: Kink Form | flangeless
bar ends: Kink Thrust

front hub: Mission Bolt | sealed | 3/8 inch (10mm) axle | 36H
rear hub: Mission Pace | sealed | freecoaster | 14mm | 36H | RHD
front rim: Mission Mylar | 36H
rear rim: Mission Mylar | 36H
front tire: Kink Sever | 20 inch diameter | 2,4 inch wide
rear tire: Kink Sever | 20 inch diameter | 2,4 inch wide

cranks: Mission Ridge | 3pc | tubular | chromoly | 8 spline | 165mm length
bb: mid | sealed | 19mm
sprocket: Kink Locator | 25T | 6061 Aluminum
chain: Mission 510H
pedals: Kink Hemlock
gearing: 25 x 9

seat: Kink Chinaski Stealth
seat post: Mission Alumninum Stealth
seat post clamp: intergrated

brake: Mission Cease V2
brake cable: Mission L4 linear
brake lever: Mission Token

pegs: 2 Mission Nylon Pegs included
