top tube length: 14.5 inch
chainstay length: 10.25 inch
head tube angle: 74 degrees
seat tube angle: 70 degrees
standover height: 6.5 inch
bottom bracket height: 8.75 inch
fork offset: 30mm

frame: Kink Pump | 100% hi-ten steel
forks: Kink Conduit | 100% hi-ten steel | tapered fork legs
bars: Kink T600 | 100% hi-ten steel | 6 inch rise
stem: Mission Topload | 40mm
headset: standard | 1 1/8 inch | threadless
grips: Mission Micro

front hub: Mission Reserve | unsealed | 3/8 inch axle
rear hub: Mission Function | semi-sealed cassette | 14mm axle | 9T driver
rims: Mission X7 | 20H
tires: Mission Tracker | 14 x 2.25 inch

cranks: forged | 1-piece | 114mm
bb: American | unsealed
sprocket: Mission Rank | 25T
chain: Mission 410
pedals: Mission Junior

seat: Mission Weider | combo
seat post: Mission Combo | steel
seat clamp: Mission Slim Clamp

brake lever: Mission Micro
brake cable: Mission L0 Linear
brakes: Mission Cease V2

pegs: not included
weight: 20 lbs 3 oz (approx. 9.16 kg)
color: Gloss Galaxy Black

additional information:

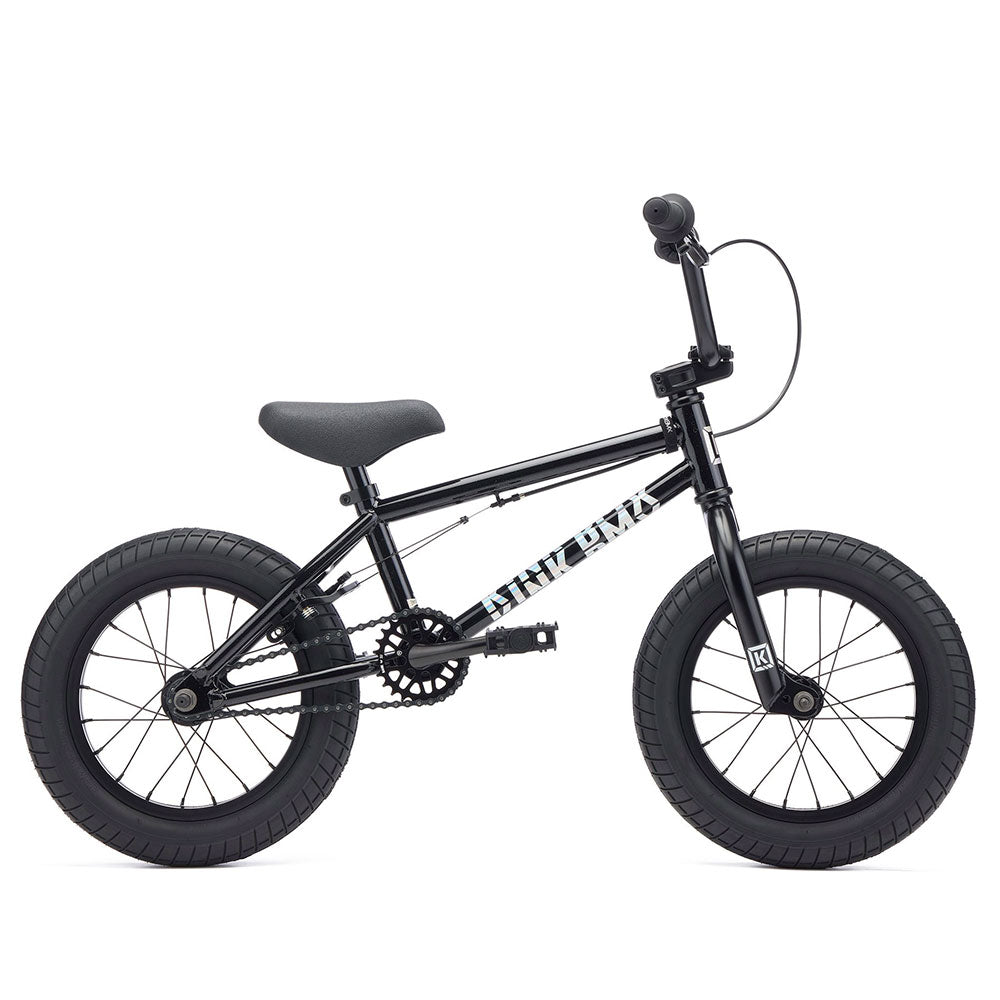

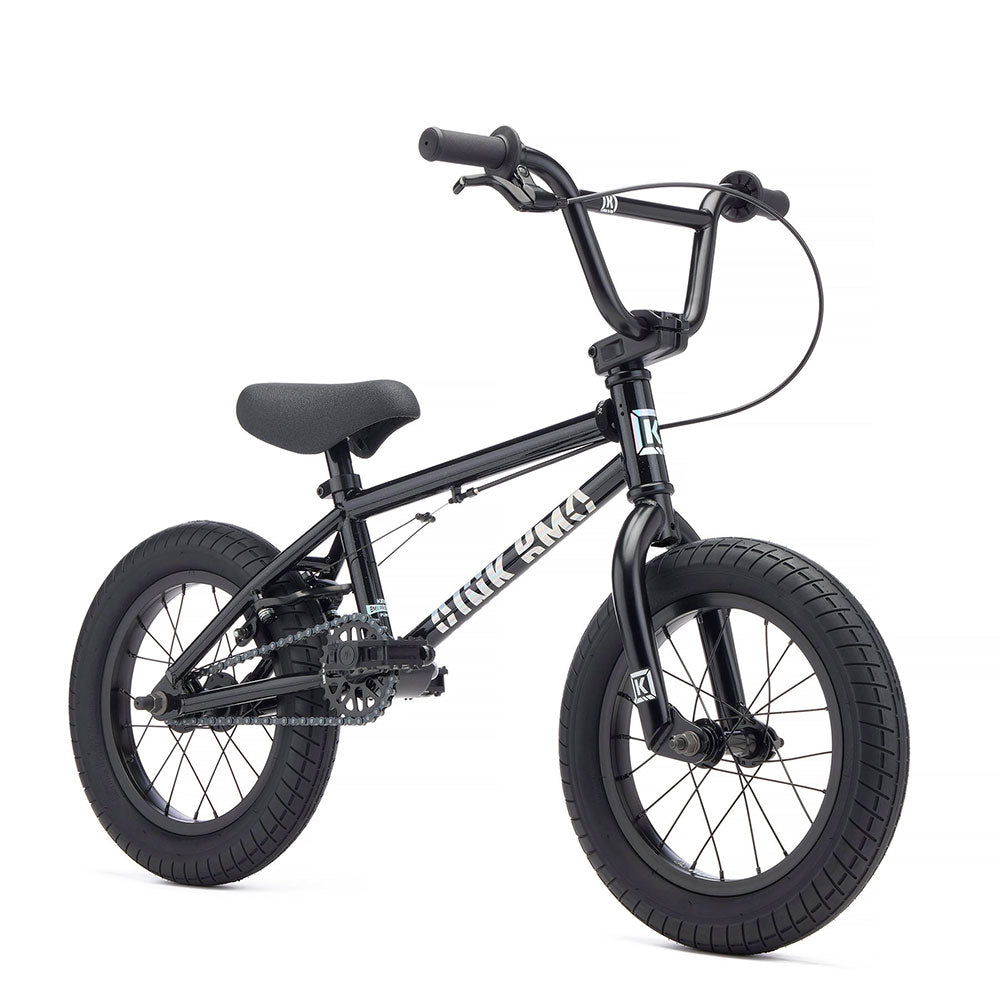

The Kink Pump 14" is designed for young BMX riders who are ready to progress from a 12 inch bike. Its proportionate geometry and carefully selected components provide a comfortable fit and easy handling for smaller riders.

Equipped with a 14 inch wheelset, semi-sealed cassette rear hub, 6 inch handlebars and a hand-operated U-brake. Finished in Gloss Galaxy Black.
