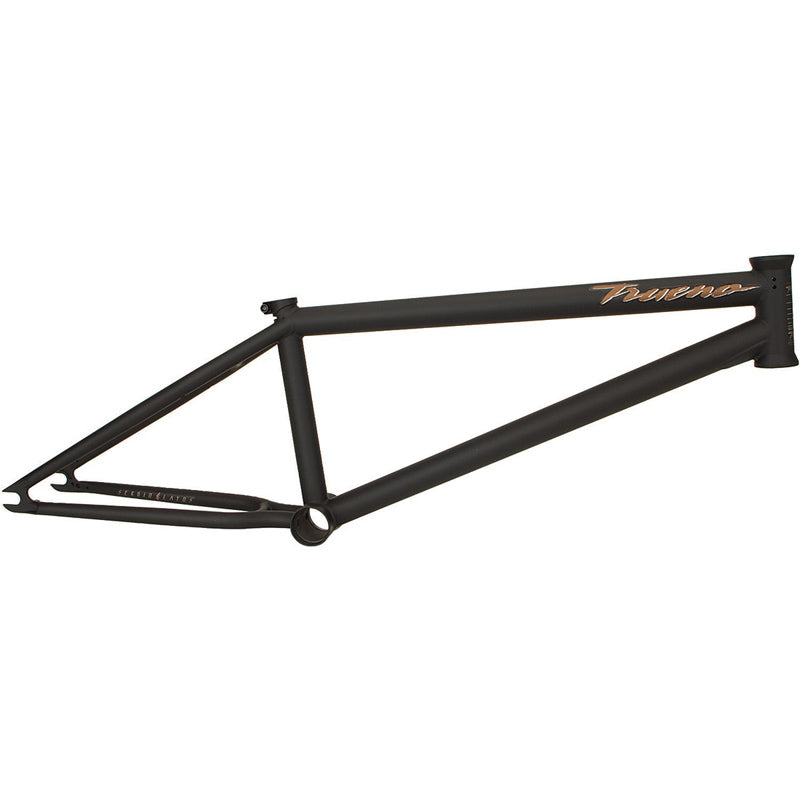

Sergio Layos signature

material: full 4130 Chromoly
top tube length: 20,6 inch
head tube angle: 75 degrees
head tube length: 113mm
seat tube angle: 71 degrees
chainstay length: 13,5 inch (slammed)
bottom bracket height: 11,75 inch
standover height: 8,8 inch

headtube: compatible with integrated headsets (45/45)
bottom bracket: mid
seattube: fits 1 inch seatposts | integrated seat clamp
dropouts: 14mm slots | integrated chain tensioner
downtube gusset: yes
toptube gusset: no

tire clearance: fits large tires
brake mounts: removable on seatstay (included)
gyro tab holes: yes (tabs included)

additional information:
invest cast seatclamp
tapered and butted tubing throuhgout for better stress distribution
