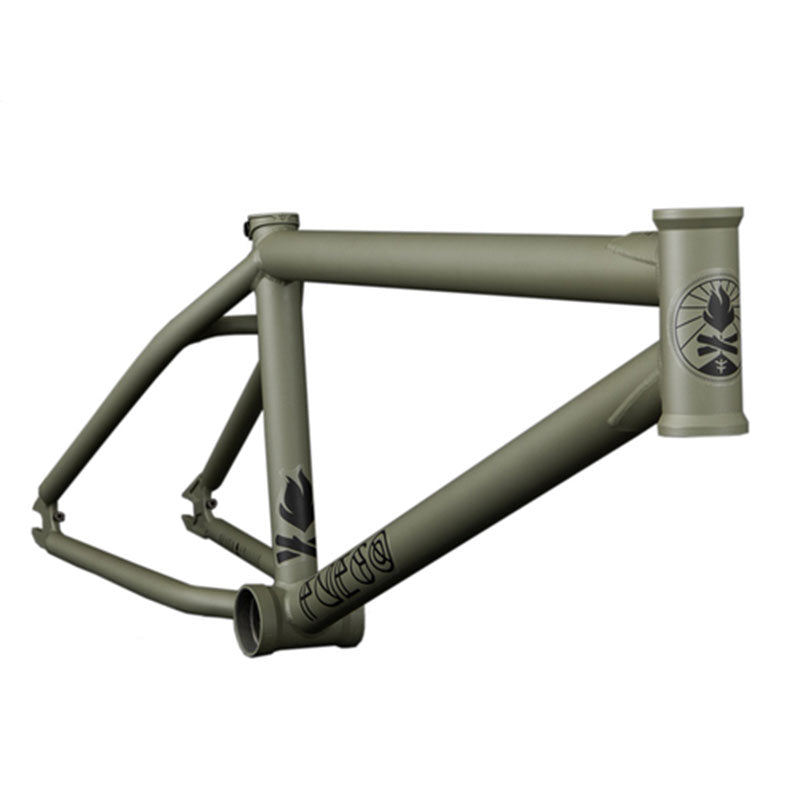

Devon Smillie signature

material: japanesse seamless 4130 CrMo
top tube length: 20.6 inch
head tube angle: 75,5 degrees
head tube length: 113mm
seat tube angle: 71 degrees
chainstay length: 12,8 inch
bottom bracket height: 11,75 inch
standover height: 9,25 inch

headtube: compatible with integrated headsets (45/45) | offset thickness | 113mm (4,45 inch) length
bottom bracket: mid | machined
seattube: fits 1 inch seat posts | integrated seat clamp
dropouts: 14mm slots | 8mm thick | 2 removable integrated chain tensioners | investment cast
downtube gusset: yes
toptube gusset: yes

tire clearance: fits large tires
brake mounts: no
gyro tab holes: no
