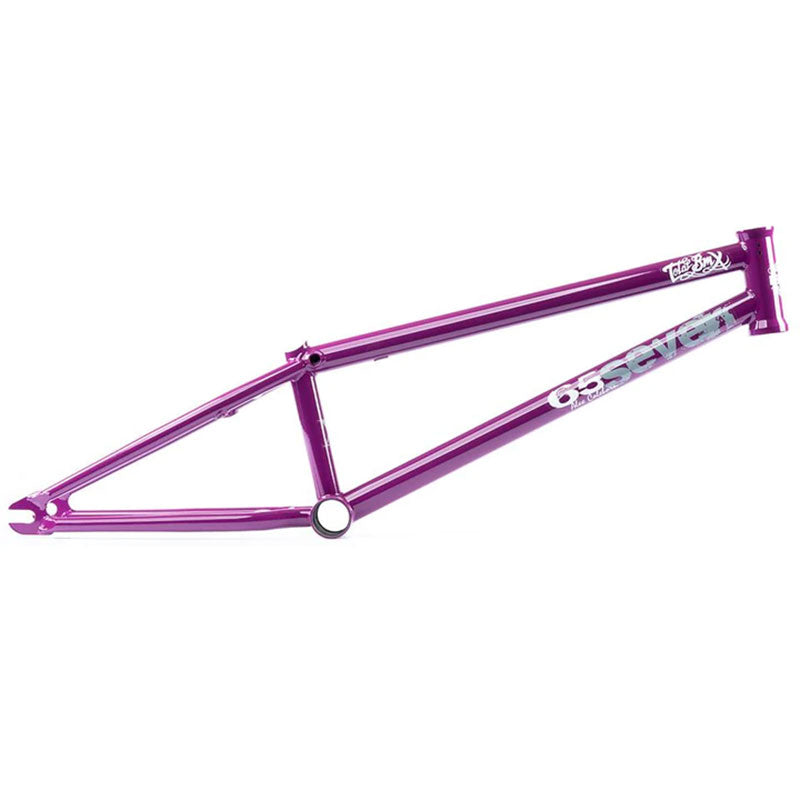

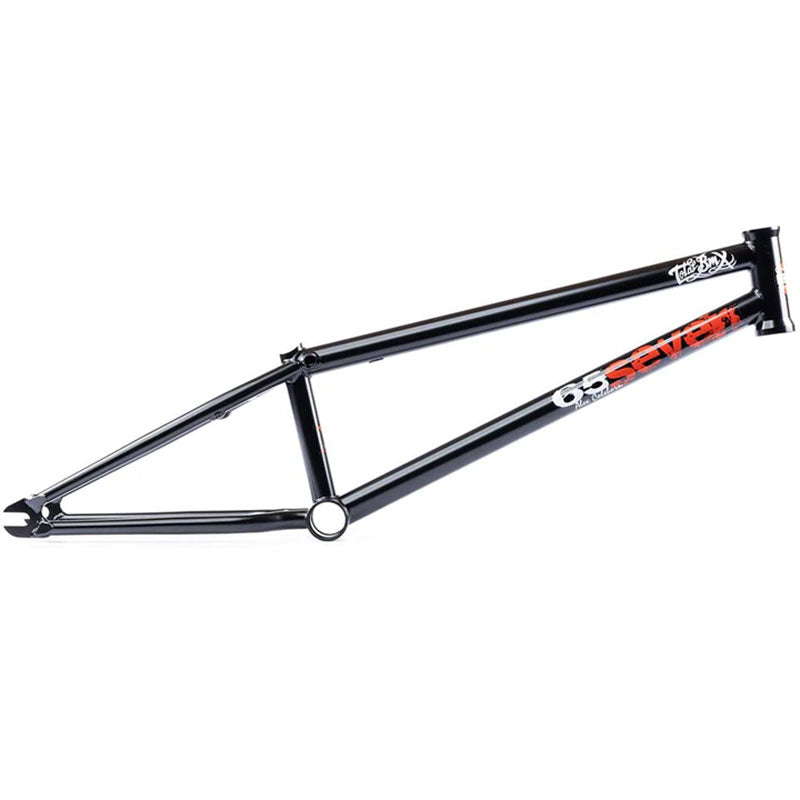

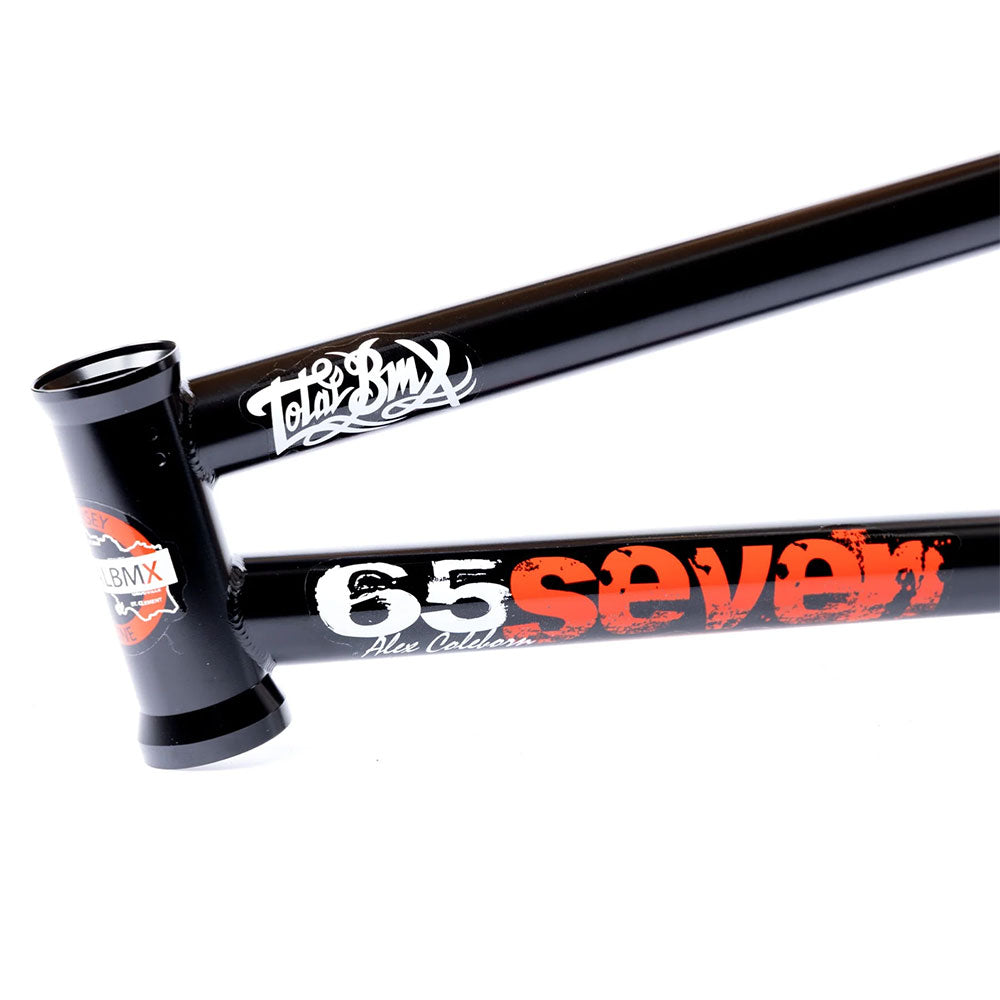

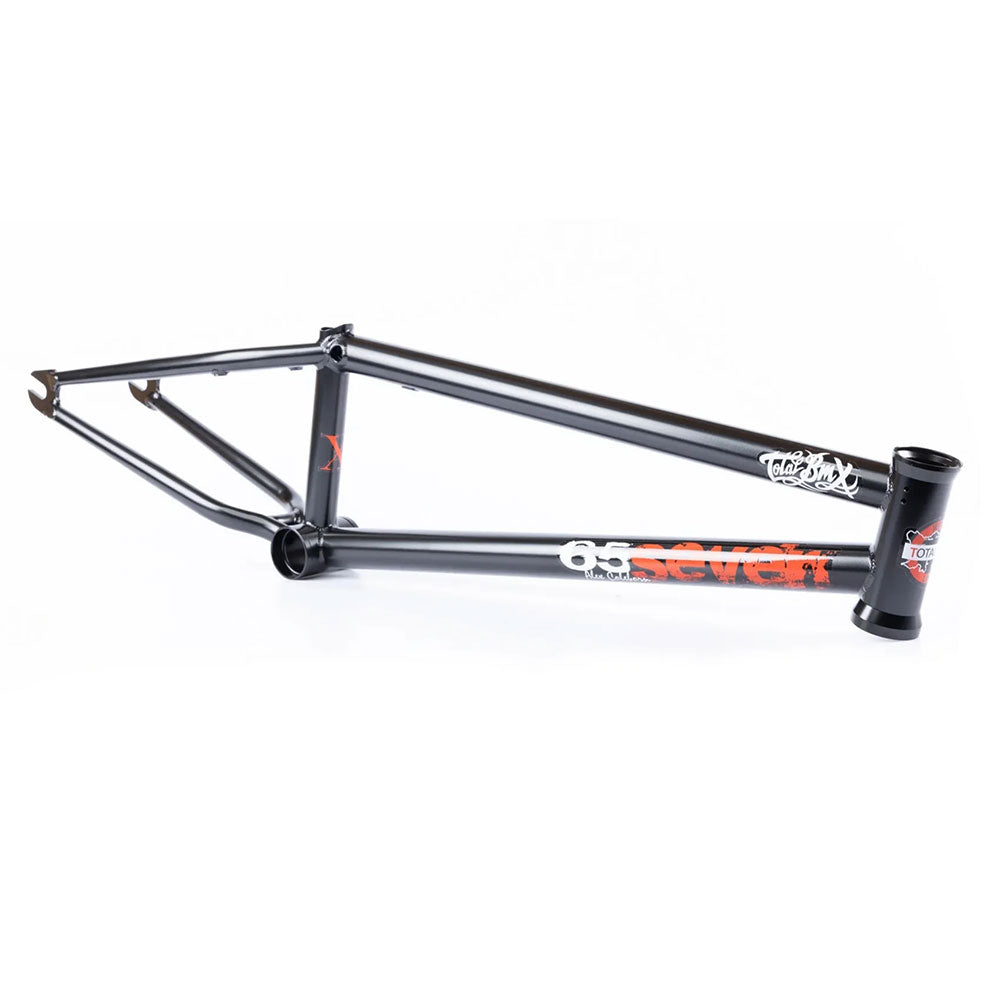

Alex Coleborn Signature

material : full multi butted japanese sanko 4130 chromoly tubing
top tube length : choose available TT length in the size menu above
head tube angle : 75 degrees
seat tube angle : 71 degrees
chain stay length : 12.8 inch
bottom bracket height : 11,5 inch
stand over height : 6,95 inch

head tube : compatible with integrated headsets (45/45)
bottom bracket : mid
seat tube : fits 1 inch seatposts | integrated seat clamp
dropouts : 14 mm dropouts | 5 mm thick
down tube gusset : internal
top tube gusset : internal

tire clearance : fits larger tires
brake mounts : removable on seatstay (not included)
gyro tab holes : yes
