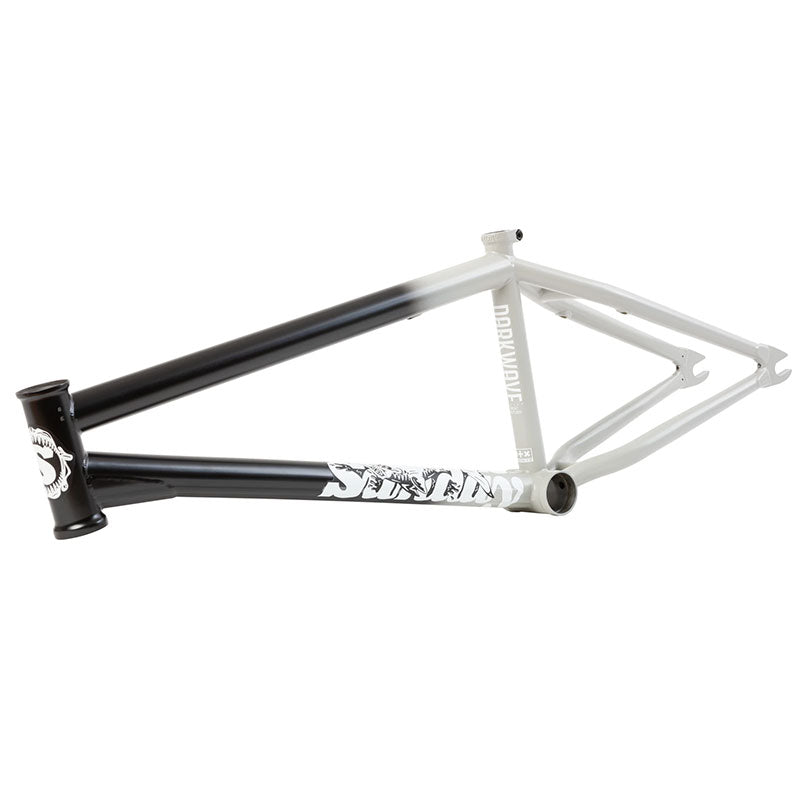

Broc Raiford Signature

material : 100% 4130 chromoly | 41-therma post-weld heat-treating | dent-resistant wave down tube
top tube length : choose available TT length in the size in the menu above
head tube angle : 75,25 degrees
head tube length: 129,5mm
seat tube angle : 71 degrees
chain stay length : 13,25 - 13,5 inch
bottom bracket height : 11,75 inch
stand over height : 9,25 inch

head tube : compatible with integrated headsets (45/45 degrees)
bottom bracket : mid
seat tube : fits 1 inch seat posts
dropouts : hollow | 8 mm thick | internal chain tensioners
down tube gusset : yes
top tube gusset : no

tire clearance : fits large tires
brake mounts : removable on seatstay (included)
gyro tab holes : yes

additional information :
butted seat tube & miter cut top tube
tapered chain & seat stays
hollow dropouts with chain tensioners
