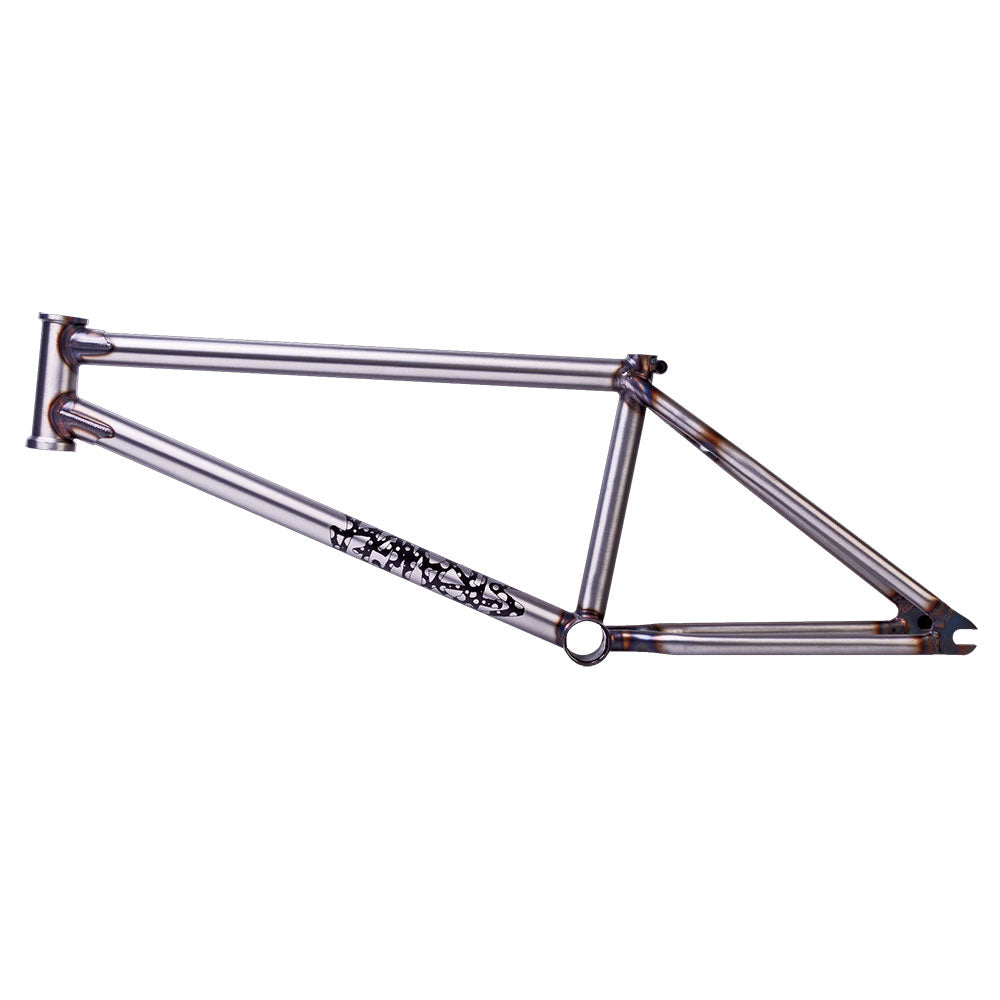

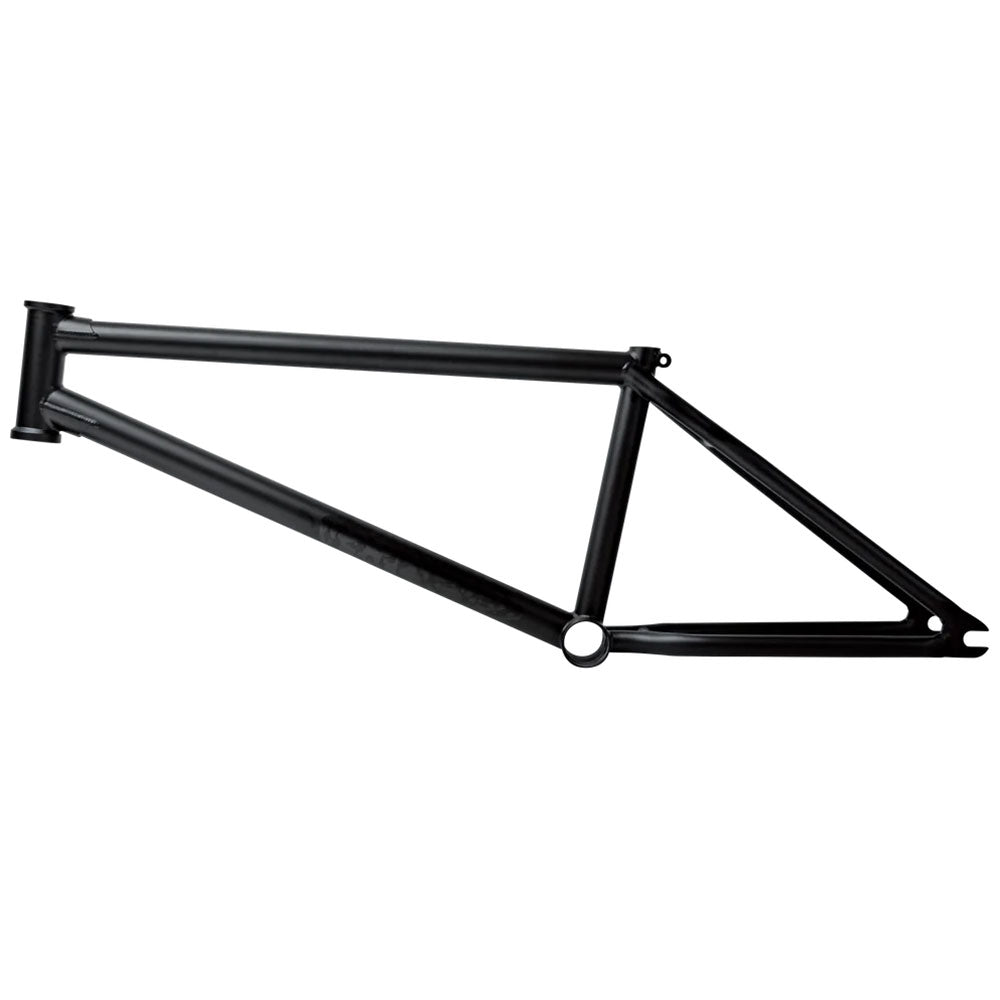

Stephan August Signature

material : 100% straight gauge Chromoly
top tube length : choose available TT size (in inch) in the size menu above
head tube angle : 75 degrees
head tube length : 5 inch
seat tube angle : 71 degrees
chain stay length : 13,6 inch
bottom bracket height : 11,6 inch
stand over height : 10 inch

head tube : compatible with integrated headsets (45/45 degrees)
bottom bracket : mid
seat tube : fits 1 inch seatposts | integrated seat clamp
dropouts : 14mm slots | 6mm thick | heat-treated
down tube gusset : yes
top tube gusset : yes

tire clearance : fits large tires
brake mounts : brakeless frame
gyro tab holes : no
