top tube length: 20 inch
chainstay length: 13.25 inch
head tube angle: 74.5 degrees
seat tube angle: 71 degrees
standover height: 8.5 inch
bottom bracket height: 11.6 inch
fork offset: 30mm

frame: Kink Curb | 100% hi-ten steel
forks: Kink Conduit | 100% hi-ten steel | tapered fork legs
bars: Kink T875 | 100% hi-ten steel | 8.75 inch rise
stem: Mission Control TL | 50mm
headset: standard | 1 1/8 inch | threadless
grips: Kink Ace | Thrust barends

front hub: Mission Reserve | unsealed | 3/8 inch axle
rear hub: Mission Function | semi-sealed cassette | 14mm axle | 9T driver
rims: Mission X7
tires: Mission Tracker | 2.40 inch width

cranks: Mission Triumph | 3-piece tubular chromoly | 170mm | 8 spline
bb: American | unsealed | 19mm
sprocket: Mission Breach | 25T
chain: Mission 410
pedals: Kink Hemlock

seat: Mission Warsaw | combo
seat post: Mission Combo | steel
seat clamp: Mission Slim Clamp

brake lever: Mission Token
brake cable: Mission L3 Linear
brakes: Mission Cease V2

pegs: not included
weight: 27 lbs 2 oz (approx. 12.3 kg)

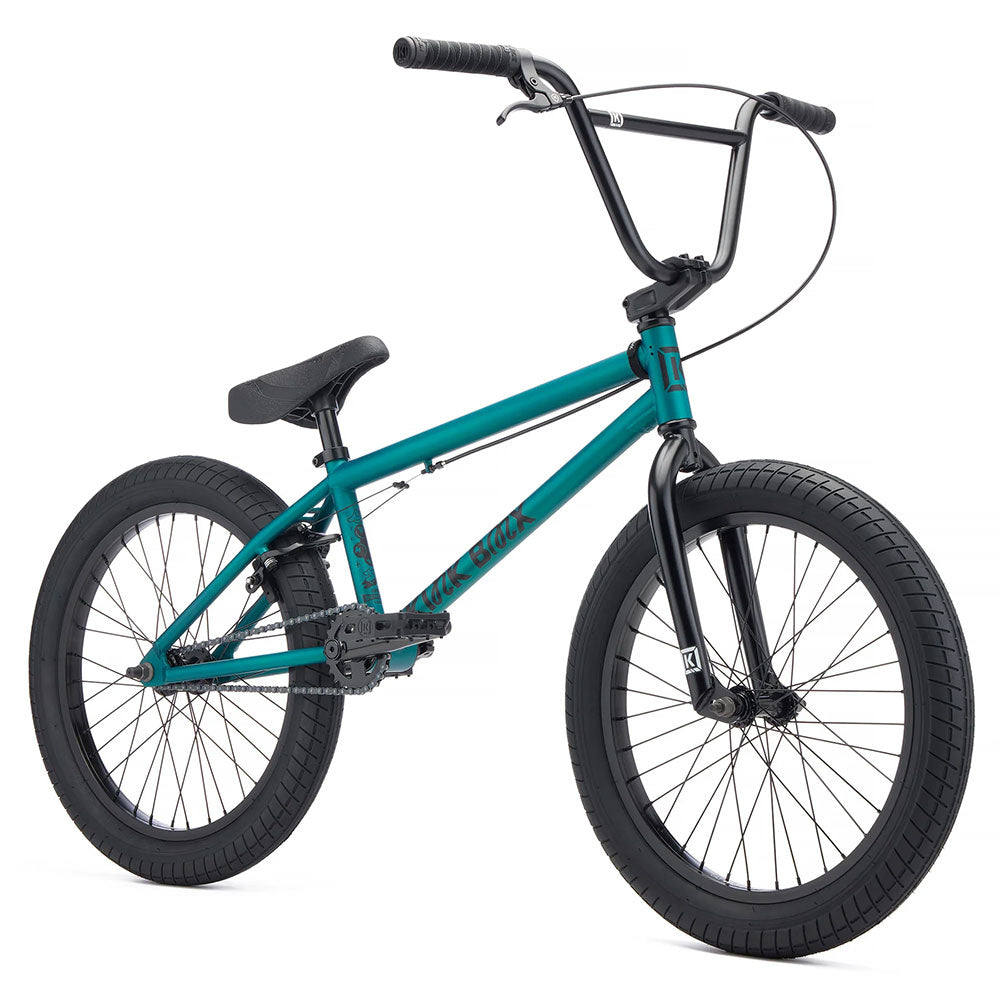

colors: Midnight Black | Black Cherry | Emerald Green

additional information:

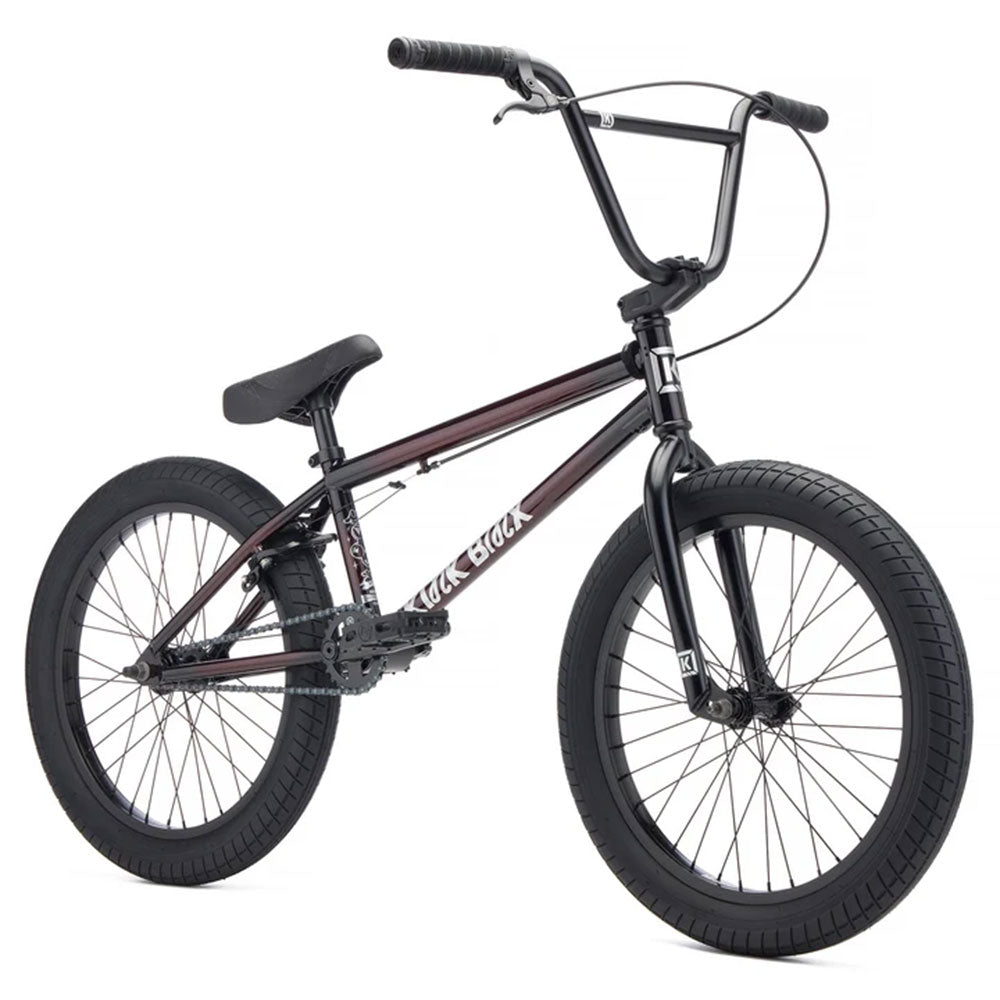

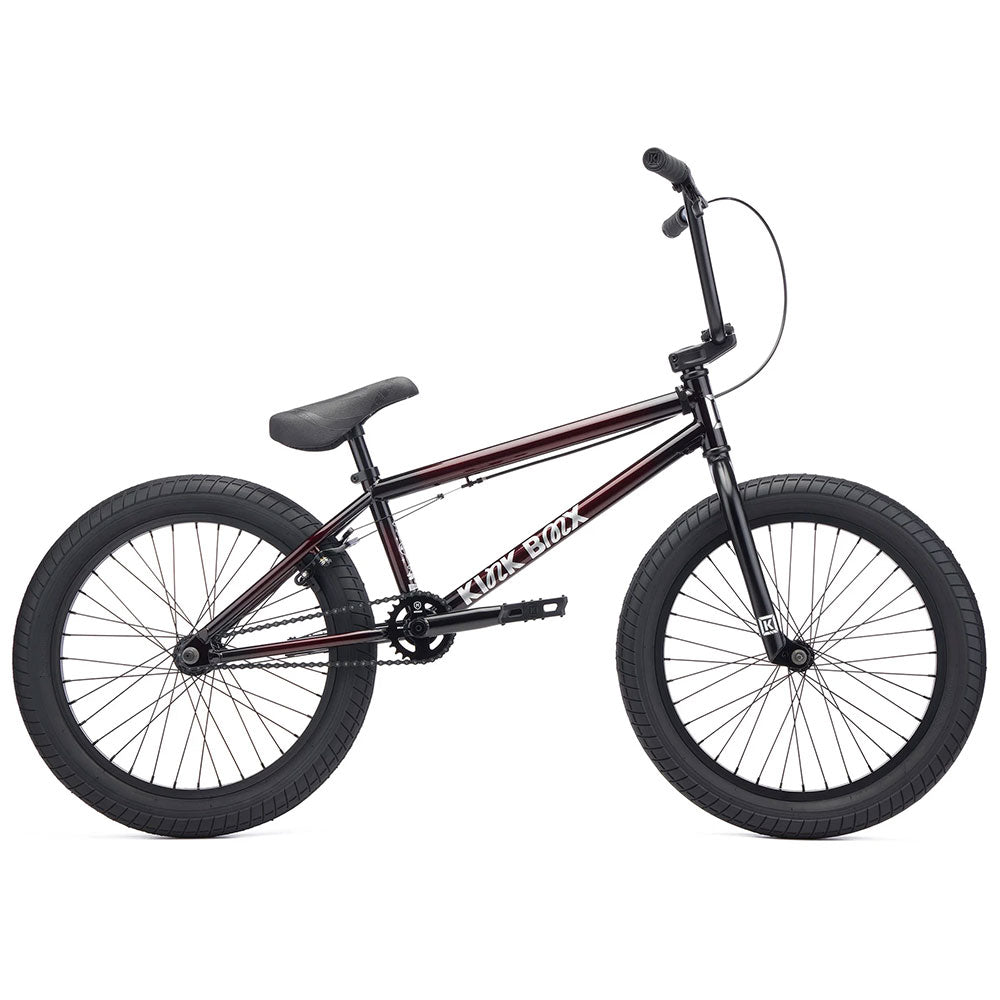

The Kink Curb 2027 is a great entry-level BMX bike designed for riders getting started with BMX freestyle. Its stable geometry makes it suitable for street riding, skateparks and dirt jumps.

Equipped with a strong 3-piece chromoly crankset, semi-sealed cassette rear hub and wide 2.40 inch tires for extra grip and comfort. The one-piece brake cable system makes assembly and maintenance easier.
