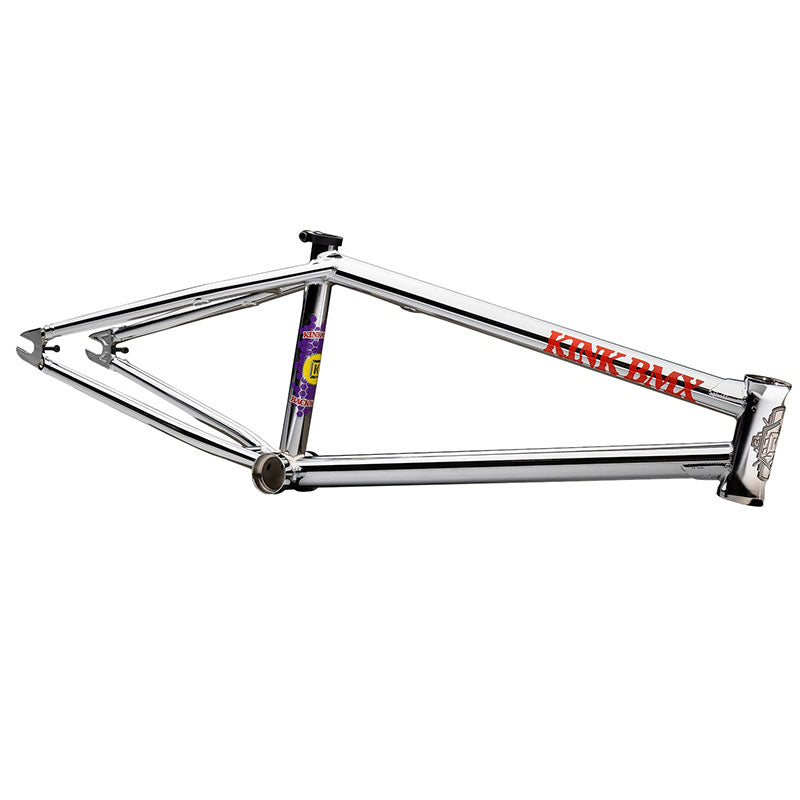

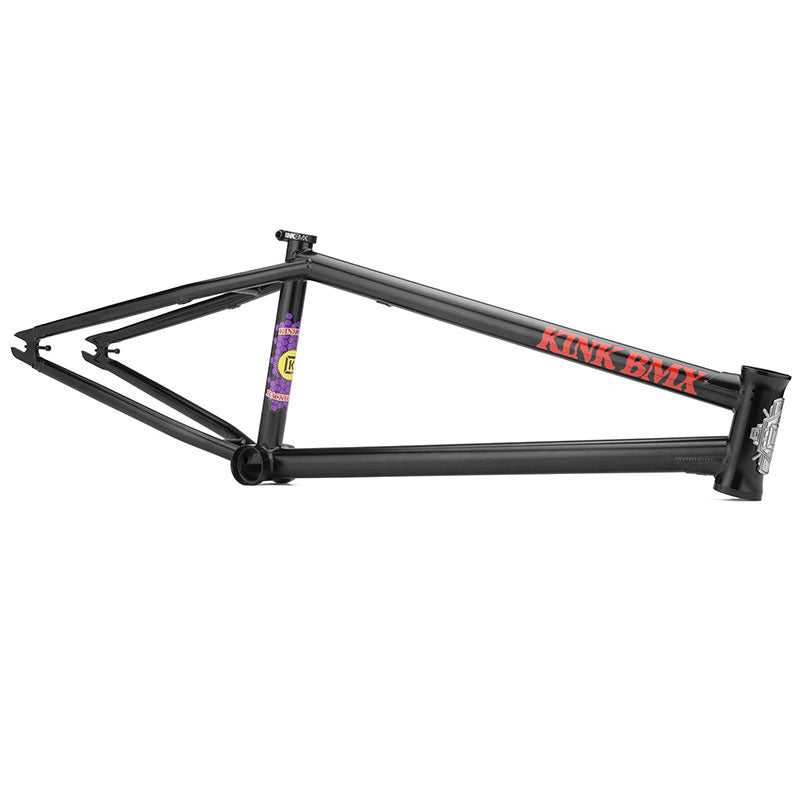

material: 100% Seamless Sanko 4130 Chromoly Tubing
top tube length: choose available TT length in the size menu above
head tube angle: 74,5 degrees
head tube length: 117mm
seat tube angle: 71 degrees
chainstay length: 13,5 (slammed)
bottom bracket height: 11,6 inch
standover height: 9 inch

head tube: compatible with integrated headsets (45/45)
bottom bracket: mid | machined
seat tube: fits 1 inch (25,4mm) seat posts
dropouts: 14mm slots | removable integrated chain tensioners | Investment Cast
down tube gusset: yes
top tube gusset: yes

tire clearance: big tires
brake mounts: removable on seatstay (included)
gyro tab holes: yes
additional information:
K-Brick Headtube Badge
Simple Straight Seatstay and Chainstay Bridges
Includes Kink Master Clamp Seat Clamp
