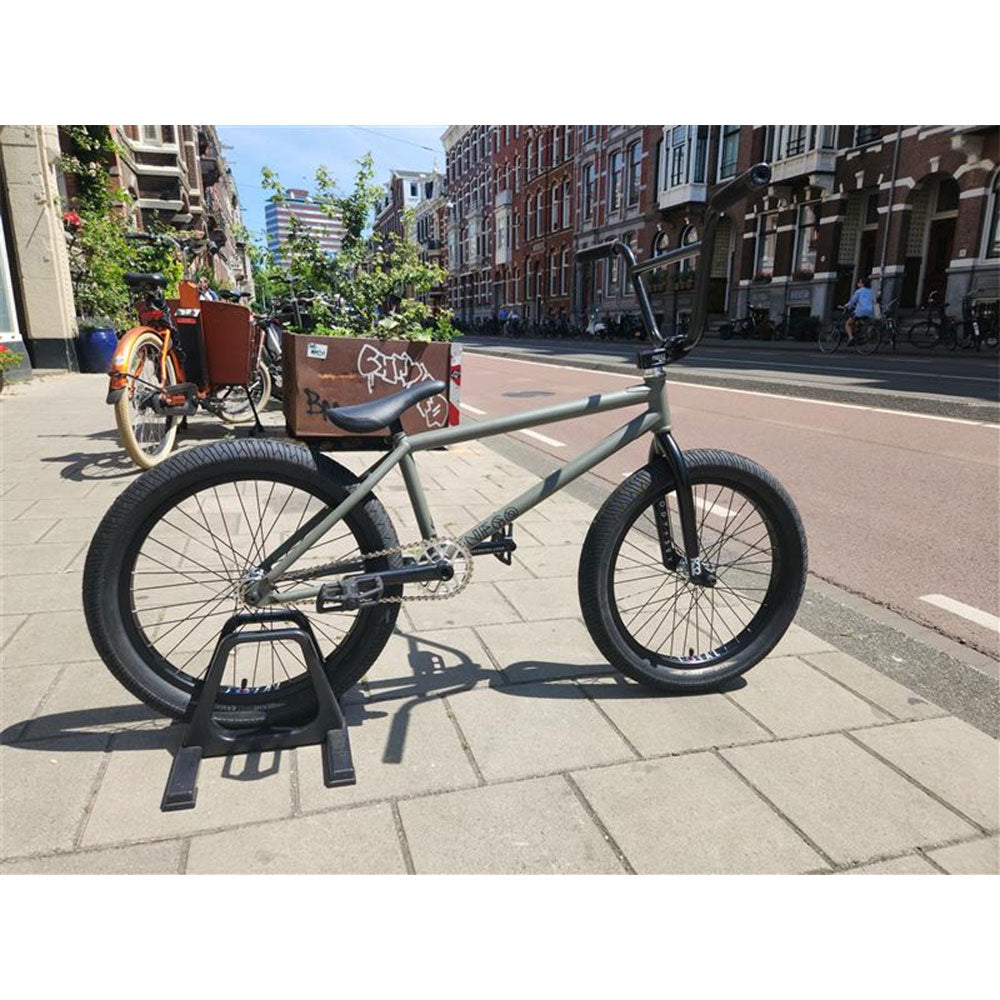

Samuel Neeter Custom Complete Bike Build

The total value of all parts including build costs is EUR 1,817.85 — so purchasing this bike for EUR 1299,95 is an excellent deal.

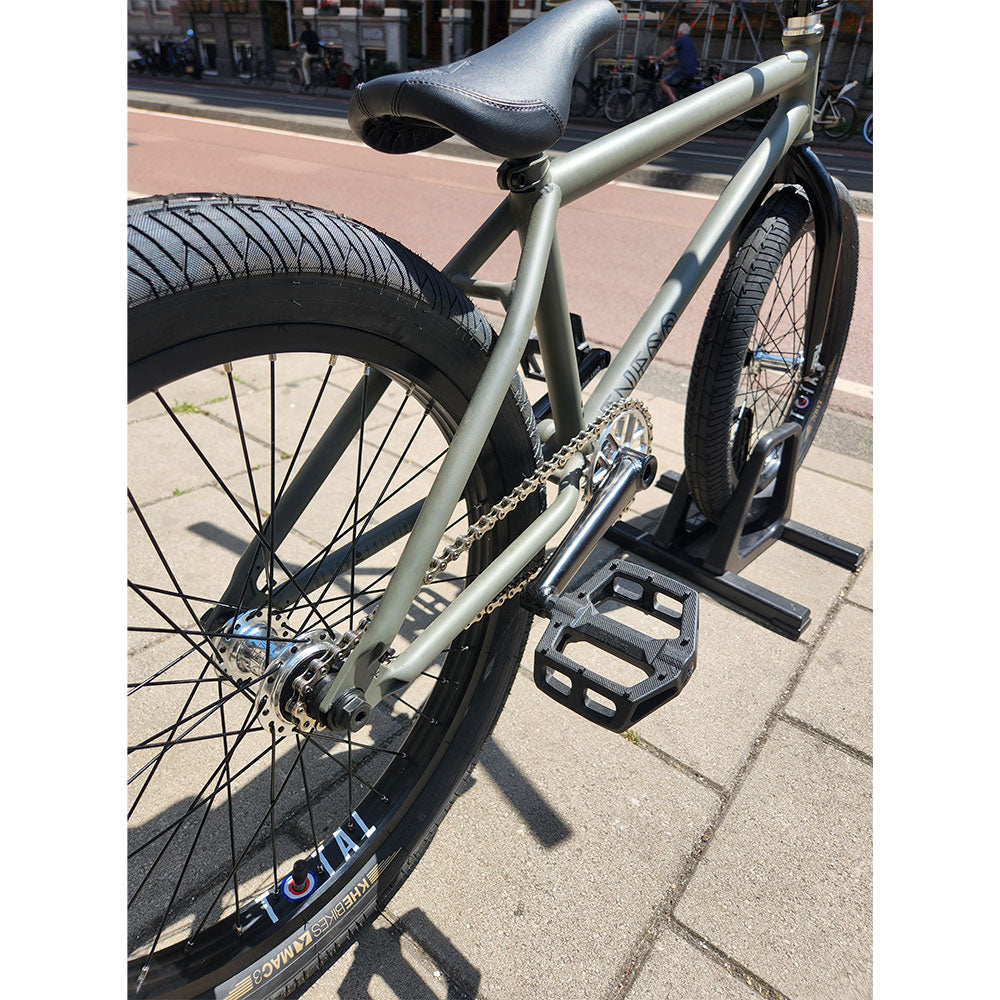

Frame: Flybikes Fuego 7 | Japanese seamless 4130 CrMo | Brakeless
Top Tube Length: 21"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Chainstay Length: 12.8"
Bottom Bracket Height: 11.75"
Standover Height: 9.25"

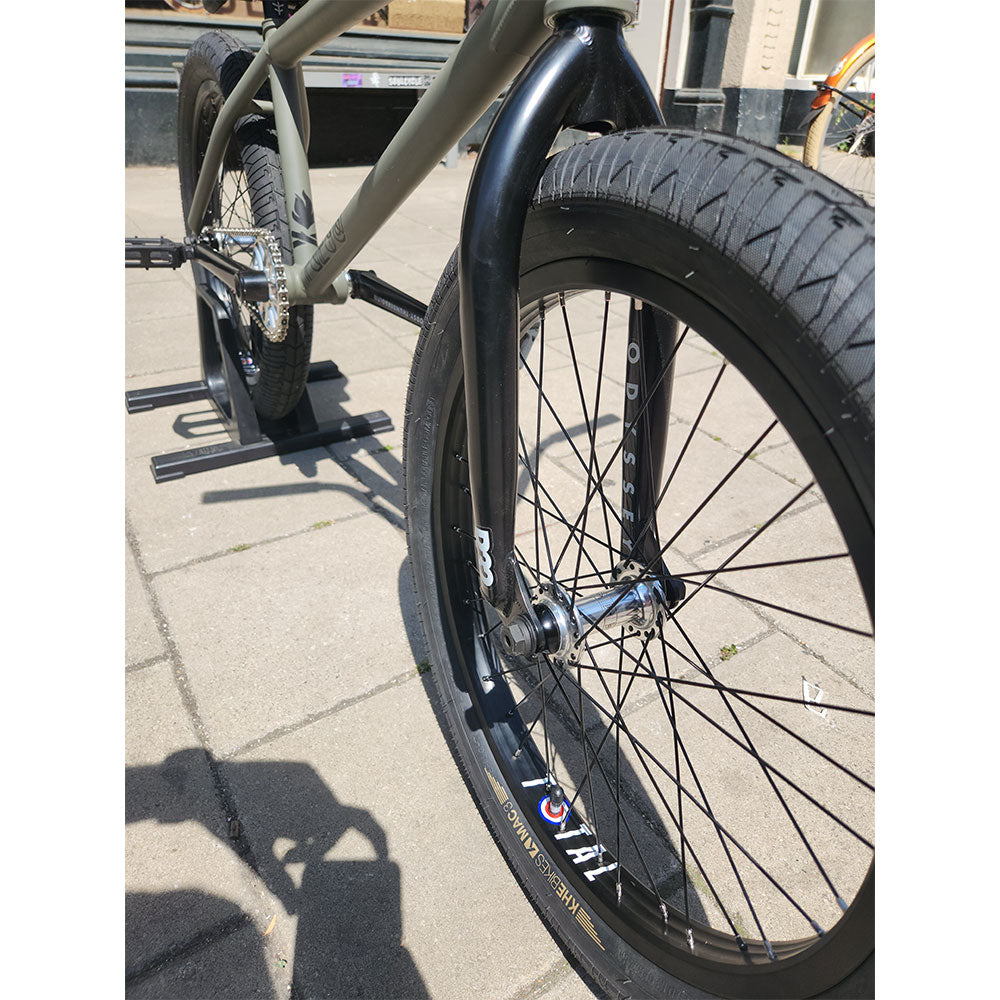

Fork: Odyssey R32 | 41-Thermal heat-treated chromoly | 32 mm offset
Handlebars: Odyssey Uppercut | Post-weld heat-treated, butted 4130 chromoly | 9" rise | 11° backsweep | 2° upsweep | 27.5" wide
Stem: Profile Push | Top load | 53 mm reach | 31.7 mm rise
Headset: Odyssey Pro | Integrated | Sealed | 1 1/8" threadless | Alloy
Grips: Odyssey Broc Raiford | 160 mm length
Bar Ends: Odyssey Par Ends

Front Hub: Relic Revolve | 6061-T6 aluminum shell | 4130 chromoly axle | Sealed female hub | 10 mm axle bolts (17 mm wrench flats & 6 mm hex slot) | 36H
Rear Hub: Relic Revolve Cassette | 6061-T6 aluminum shell | 4130 chromoly axle & driver | 9T driver | 4 pawls & 4 springs | Sealed bearings | RHD/LHD compatible | 36H
Spokes: Odyssey HGS
Front Rim: Total Spitfire | 6066-T6 aluminum | 20" diameter | 34 mm wide | 16 mm height | ERD 394 mm | Cross laced | 36H
Rear Rim: Total Spitfire | 6066-T6 aluminum | 20" diameter | 34 mm wide | 16 mm height | ERD 394 mm | Cross laced | 36H
Front Tire: KHE MAC3 Street/Park | 20" x 2.4" | Max 100 PSI (6.9 bar) | Steel bead
Rear Tire: KHE MAC3 Street/Park | 20" x 2.4" | Max 100 PSI (6.9 bar) | Steel bead

Cranks: Odyssey Thunderbolt | 2-piece | 41-Thermal chromoly | 175 mm | 22 mm spindle
Bottom Bracket: Total Team | Mid | Sealed | 22 mm
Sprocket: Snafu OLA | 7075 aluminum | 28T
Chain: Flybikes Tractor | Silver
Pedals: Flybikes Ruben | Nylon & fiberglass compound
Gearing: 28/9

Seat: Flybikes Aire | Tripod
Seat Post: Flybikes Tripod | 200 mm
Seat Clamp: Integrated

Brakes: BRAKELESS
Brake Cable: BRAKELESS
Brake Lever: BRAKELESS

Color: Dried Thyme frame | Black fork | Polished hubs
