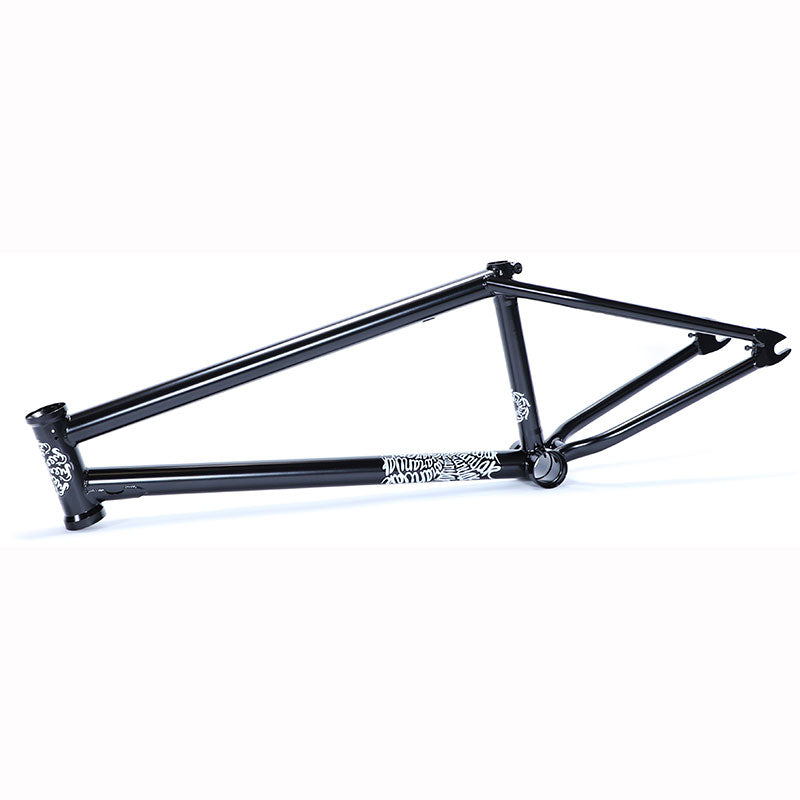

Fiend Varanyak V3 Frame

Fiend Varanyak V3 Frame

Verzendkosten worden berekend bij de checkout.



Barcode (EAN) per variant
BLACK / 20.25''TT / BRAKEMOUNT: 742776688258

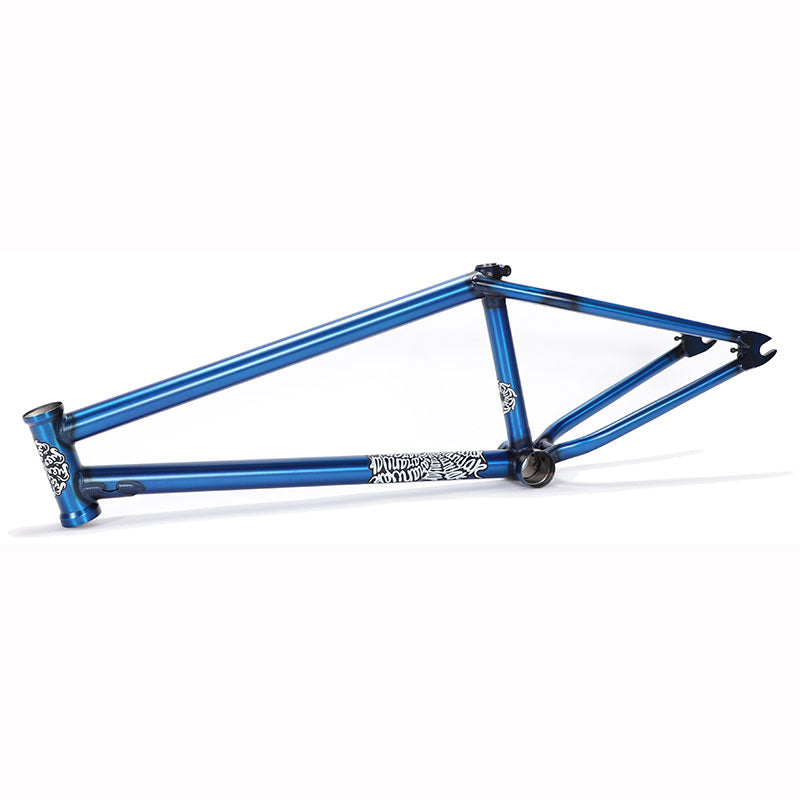

BLUE / 20.5''TT / BRAKEMOUNT: 742776688302
BLUE / 20.75''TT / BRAKEMOUNT: 742776688319
BLUE / 21''TT / BRAKEMOUNT: 742776688296
Weight per variant
BLACK / 20.25''TT / BRAKEMOUNT: 2.26 kg
BLUE / 20.5''TT / BRAKEMOUNT: 2.26 kg
BLUE / 20.75''TT / BRAKEMOUNT: 2.26 kg
BLUE / 21''TT / BRAKEMOUNT: 2.26 kg
material: full 4130 Chromoly
top tube length: choose available TT length in the size menu above
head tube angle: 75,5 degrees
head tube length: *
seat tube angle: 71 degrees
chainstay length: 12,7 inch
bottom bracket height: 11,5 inch
standover height: 9 inch

headtube: compatible with integrated headsets (45/45) | heat treated
bottom bracket: mid | heat treated
seattube: fits 1 inch seat posts | integrated seat clamp | externally machined
dropouts: 14mm slots | 6mm thick | heat treated | integrated chain tensioners
downtube gusset: yes
toptube gusset: yes (internal)

tire clearance: fits large tires
brake mounts: yes (included)
gyro tab holes: yes

additional information :
dropouts with integrated chain tesioners

note :
due to the nature of semi-transparent paint finishes the character of the raw tubing will be visible and may contain vein-like abnormalities making each frame unique.
