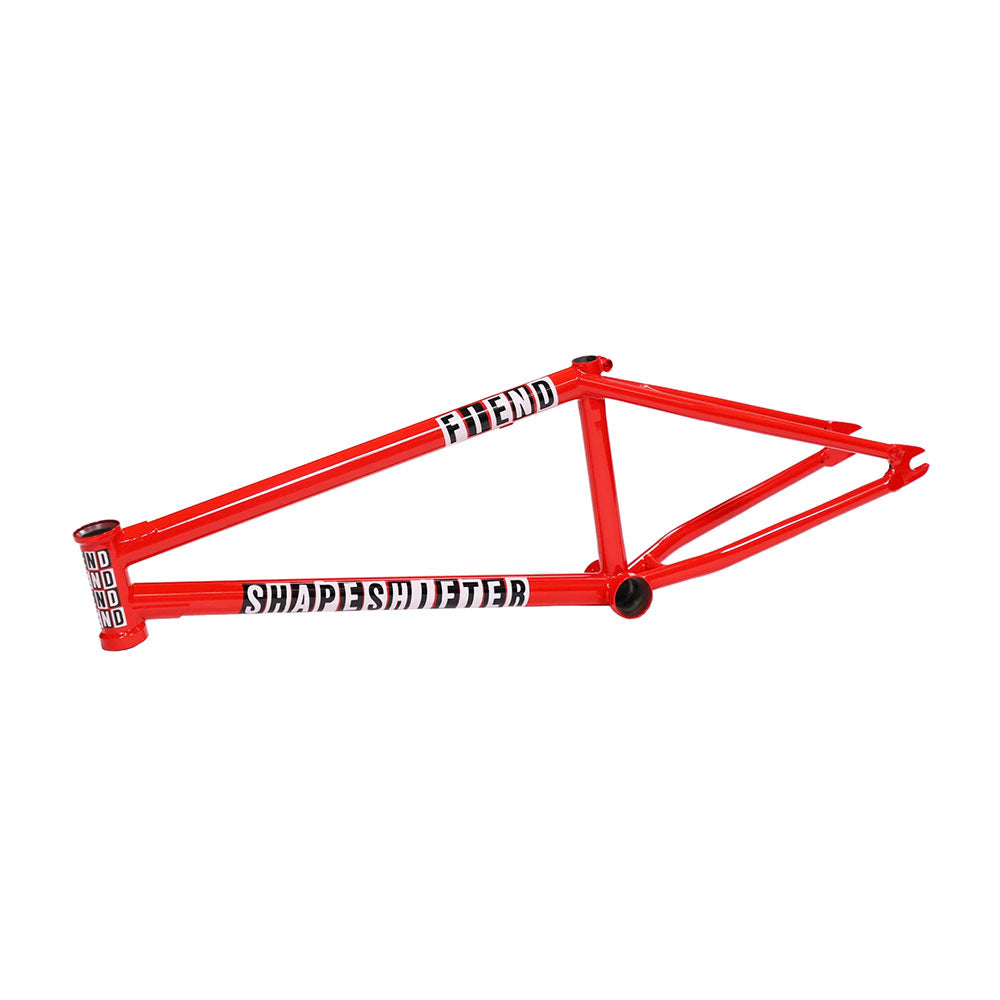

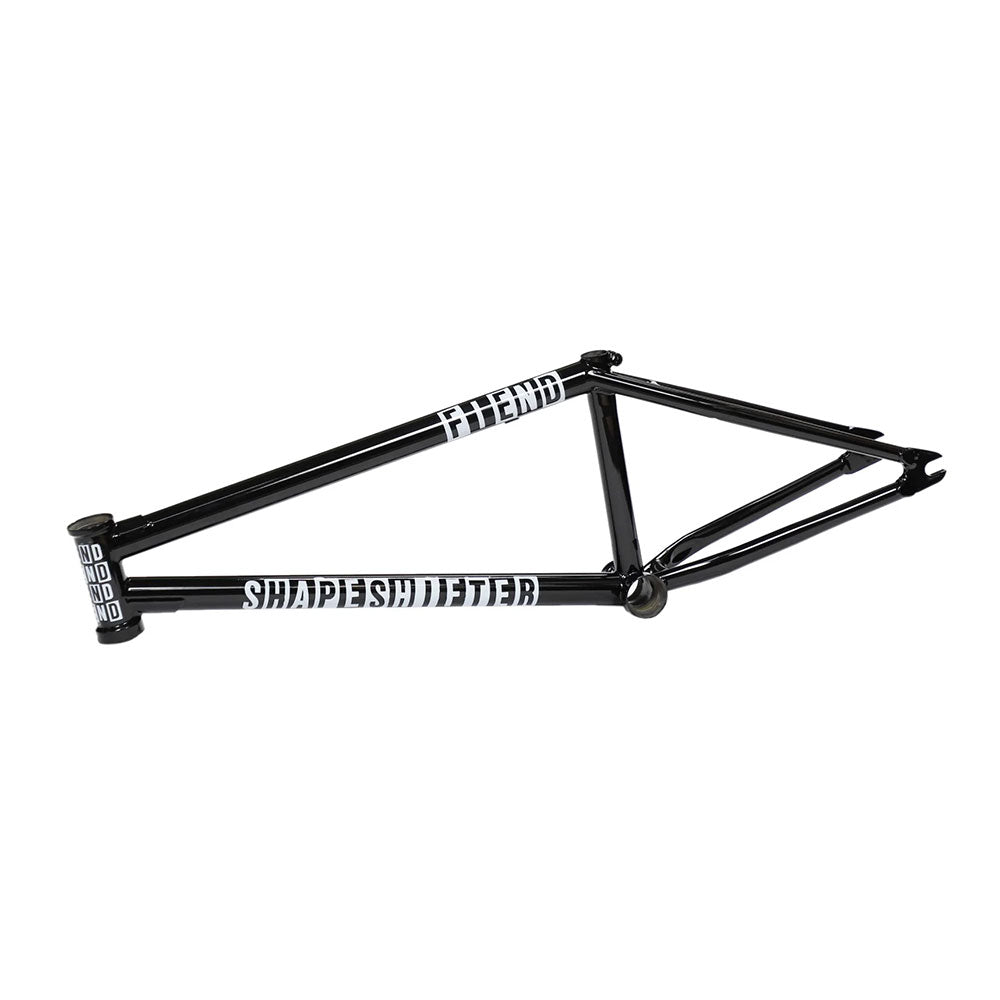

Fiend Shapeshifter Frame (320mm CS)
Fiend Shapeshifter Frame (320mm CS)
Log in to view dealer price
Verzendkosten worden berekend bij de checkout.
Kan beschikbaarheid voor afhalen niet laden
SKU
SKU:20000090
| Weight per variant | |
|---|---|
| BLACK / 20.75''TT / BRAKEMOUNT: | 2.31 kg |
| BLACK / 21''TT / BRAKEMOUNT: | 2.31 kg |
| RED / 20.75''TT / BRAKEMOUNT: | 2.31 kg |
| RED / 21''TT / BRAKEMOUNT: | 2.31 kg |
material: 100% 4130 Chromoly
top tube length: select available TT length in the size menu
head tube angle: 75,5 degrees
seat tube angle: 71 degrees
chainstay length: 12,75 - 13,2 inch
bottom bracket height: 11,625 inch
standover height: 9 inch
headtube: 5 inch | compatible with integrated headsets (45/45) | heat treated
bottom bracket: mid | heat treated
seattube: fits 1 inch seatposts | integrated seat clamp
dropouts: 14mm slots | 6,5mm thick | investment cast | integrated chain tensioners
downtube gusset: yes | external
toptube gusset: yes | internal
tire clearance: fits large tires
brake mounts: removable M8 brake mounts (not included)
gyro tab holes: yes
additional information:
• Butted tubing
• Tapered chainstays
• Integrated chain tensioners
• Adjustable 12,75 - 13,2 inch chainstay length
