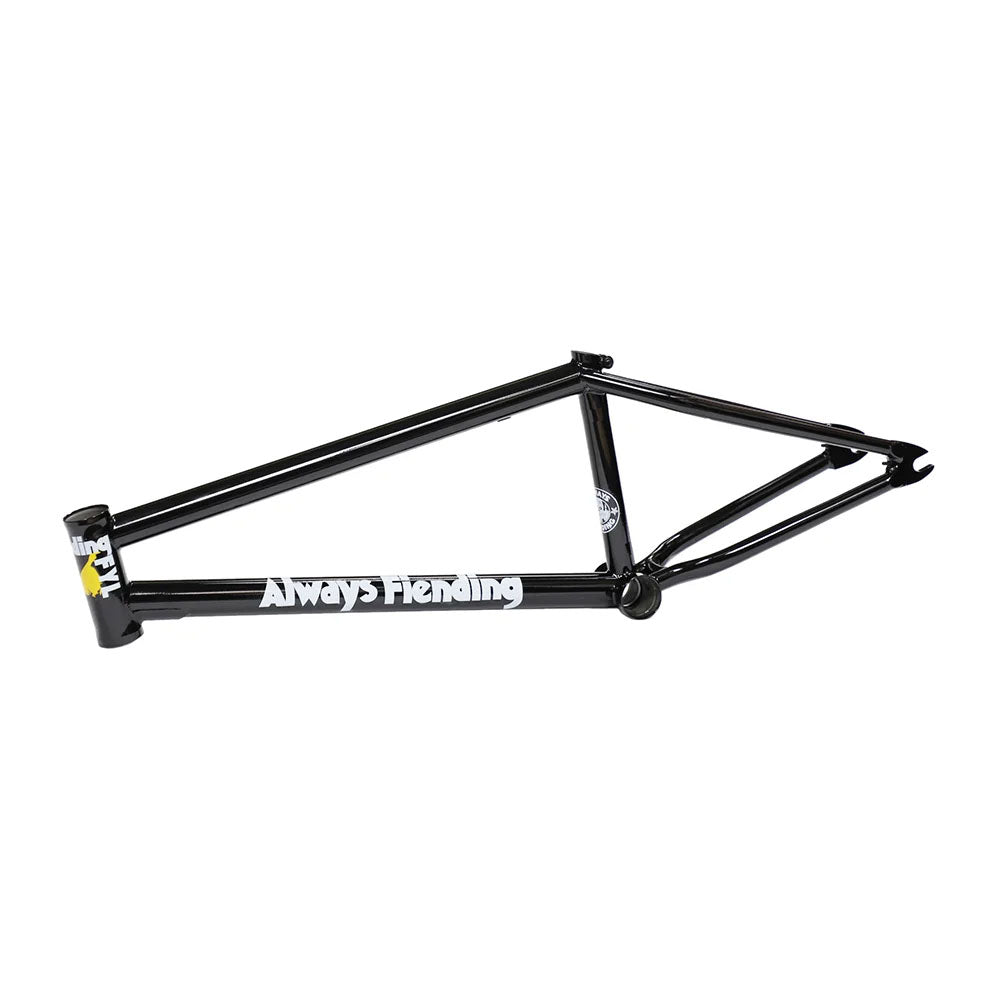

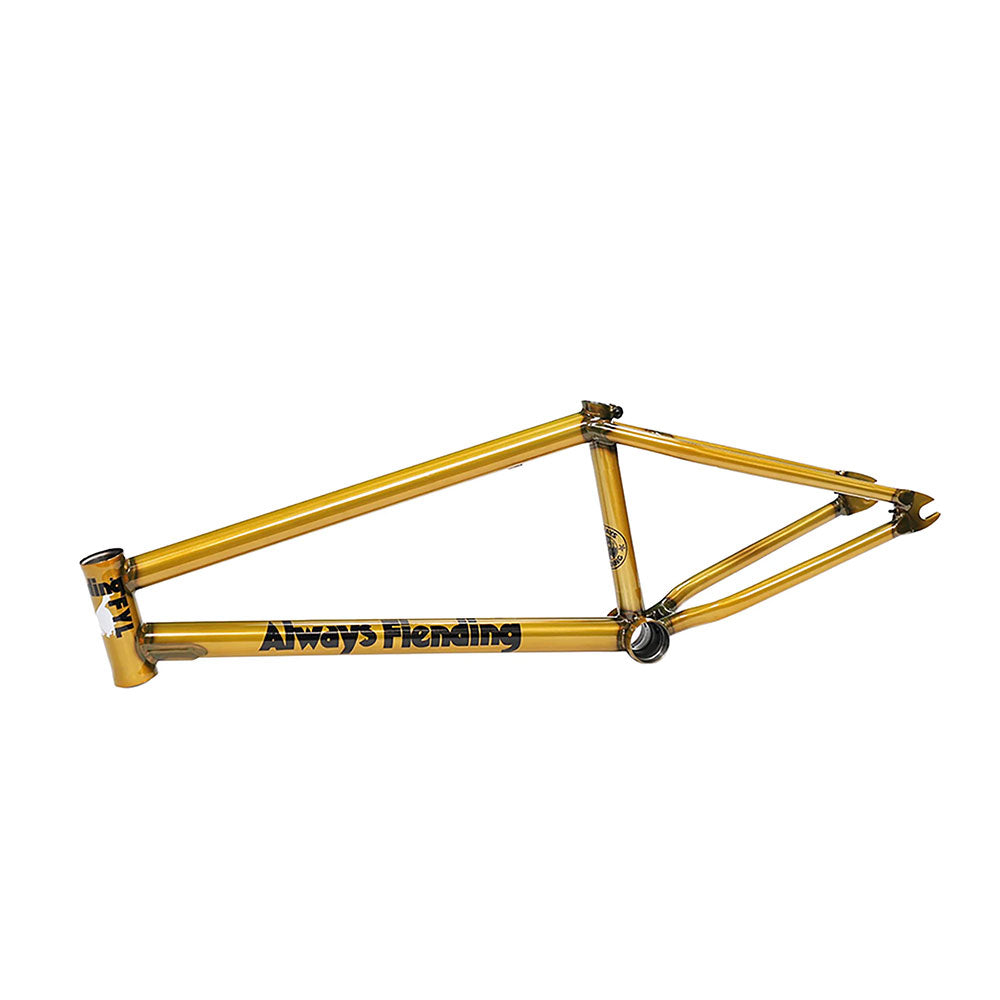

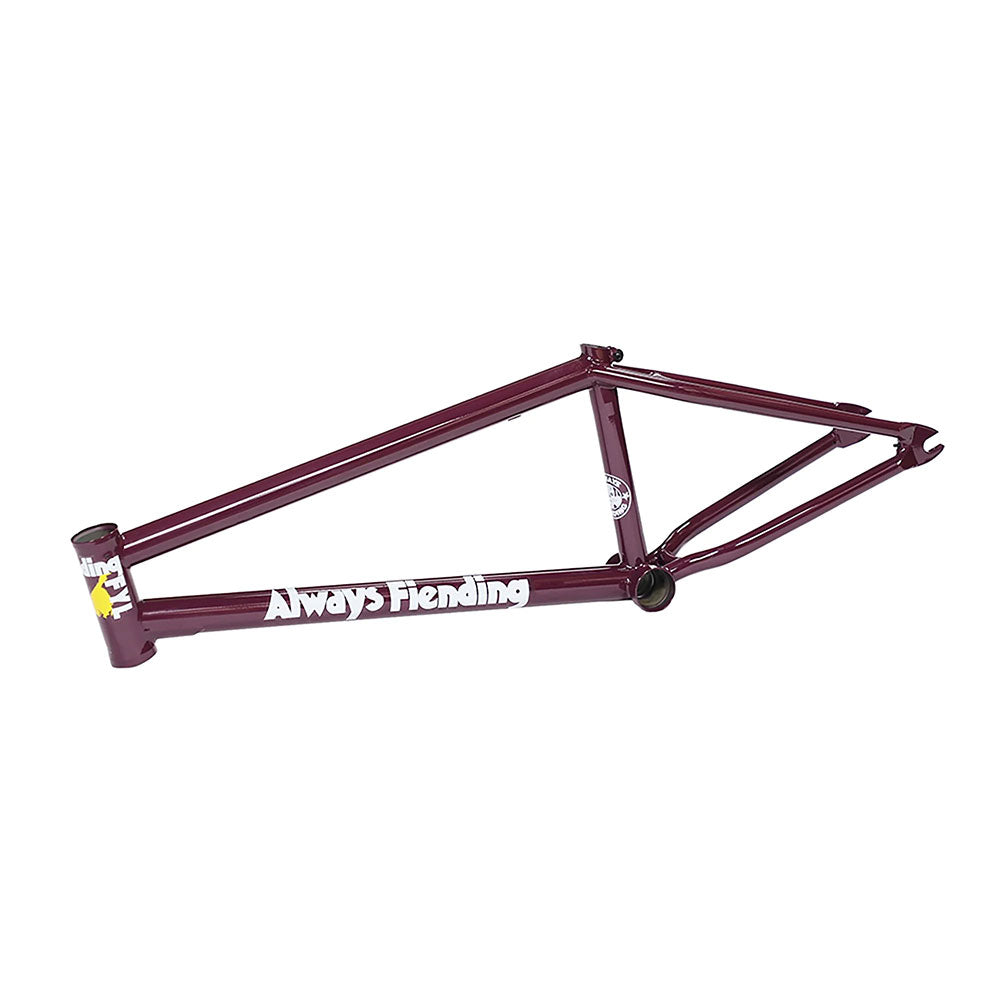

Garrett Reynolds signature

material: 100% heat-treated 4130 Chromoly
top tube length: select available TT length in the size menu
head tube angle: 75,5 degrees
seat tube angle: 71 degrees
chainstay length: 12,75 inch
bottom bracket height: 11,625 inch
standover height: 9 inch

headtube: 5 inch | compatible with integrated headsets (45/45) | heat treated
bottom bracket: mid | heat treated
seattube: integrated seat clamp | externally butted
dropouts: 14mm slots | 8mm thick | investment cast | integrated chain tensioners
downtube gusset: yes | external
toptube gusset: yes | internal

tire clearance: fits large tires
brake mounts: yes (not included)
gyro tab holes: yes

additional information:
• Garrett Reynolds signature frame
• Double-butted top and down tubes
• Updated chainstay shape
• Integrated chain tensioners
• Fiend Flush Brake Mount Kit sold separately
