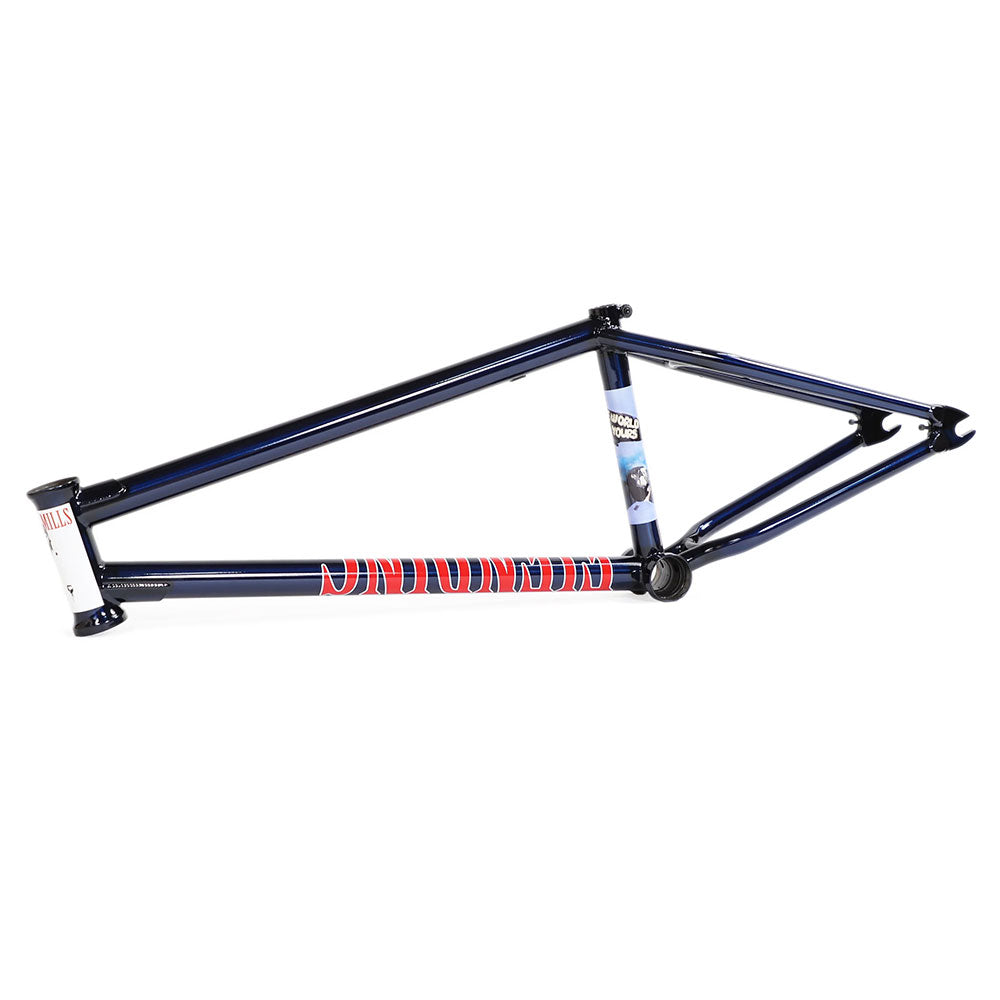

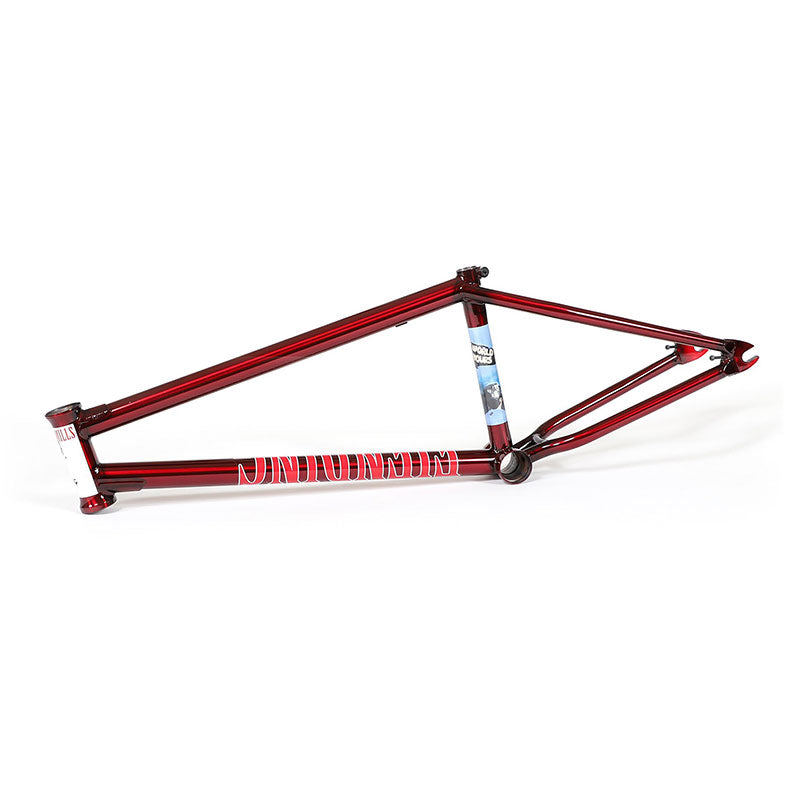

Lewis Mills signature

material: 100% 4130 Chromoly
top tube length: choose available TT length in the size menu above
head tube angle: 75,5 degrees
seat tube angle: 71 degrees
chainstay length: 13,125 inch
bottom bracket height: 11,625 inch
standover height: 9,5 inch

headtube: compatible with integrated headsets (45/45) | heat treated
bottom bracket: mid | heat treated | CNC machined
seattube: fits 1 inch seatposts | integrated seat clamp | externally machined
dropouts: 14mm slots | 8mm thick | heat treated
downtube gusset: yes
toptube gusset: yes

tire clearance: fits large tires
brake mounts: yes (not included)
gyro tab holes: no
